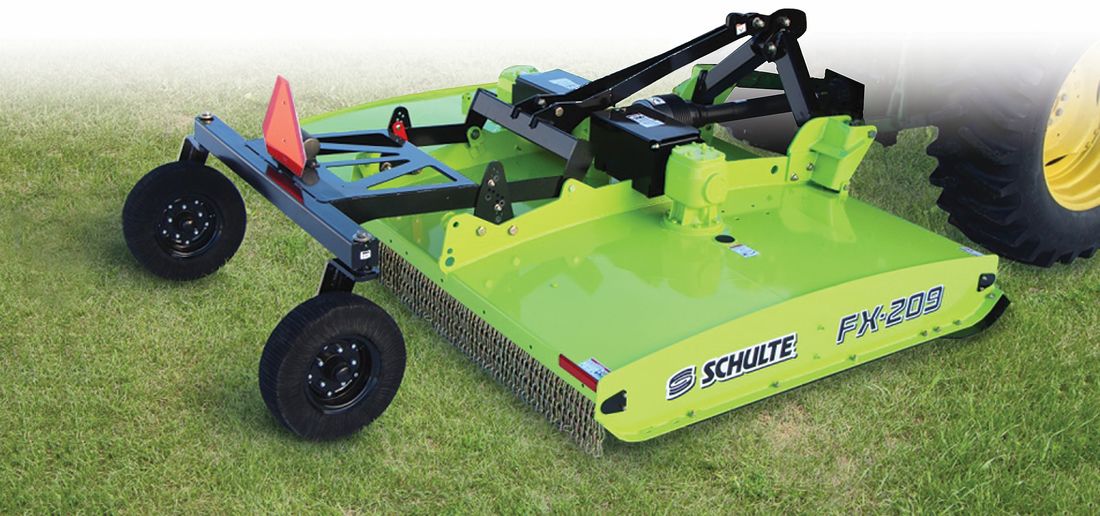

Schulte Slasher & Rotary Cutter FX209

The Most Versatile 9' Push / Pull Mower on the Market

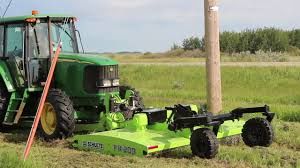

  • Push or pull capability.
  • Rigid single domed 7-gauge deck construction.
  • Two rotor base unit common to all configuration.
  • Pull type, three-point, semi mount and semi mount swing hitching options.
  • 540 and 1000 RPM drive options.
  • 74 m / 9’ overall width.
  • Heavy duty gear boxes and G8 drive lines.
  • Pull type unit can accept open clevis, solid tongue, adjustable clevis or precision hitch options.
  • Four tyre options: solid laminate, severe duty, severe duty foam filled or forklift tyres.
FX-209 Specifications

Overall width

2.96 m (9’ 8.5") skids inboard, 3.06 m (10’ 1/2") skids outboard

Overall length

4.1 m (13’ 6.5") trailing, 3.3 m (10’ 7") other configurations

Transport clearance

29.2 cm (11.5")

Cutting height

5.1 cm - 33 cm (2" - 13")

Cutting width

2.78 m (9’ 1.25”)

Cutting capacity

7.6 cm (3")

Approximate weight

952 kg (2100 lbs.) – 1297 kg (2860 lbs.) dependent on configuration

Hitch type

Cat. II & III 3 Point / Semi Mount Swing, Trailing Pull

Deck thickness

7 GA (3/16", 4.6 mm)

Side skirt

6.35 mm x 337 mm (1/4" x 13.75")

Gear box rating

210 HP (157 kW)

Blade tip speed

540 RPM - 17086 FPM

Tractor PTO speed

540 RPM

Minimum tractor HP

50 HP (37.3 kW)

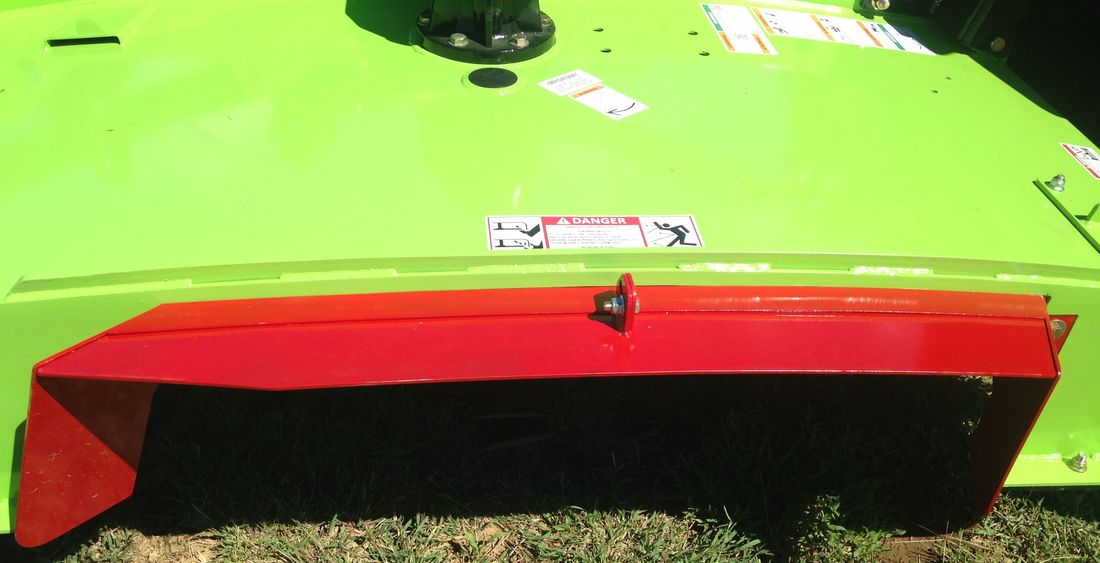

Deflectors

Double chain front and rear

Three point linkage hitch.

Trailing hitch.

Hydraulic Swing hitch - allows the unit to be shifted 33cm to the left or right from the tractor seat.

The reversing gear box allows the machine to be mounted on the front of a tractor.
