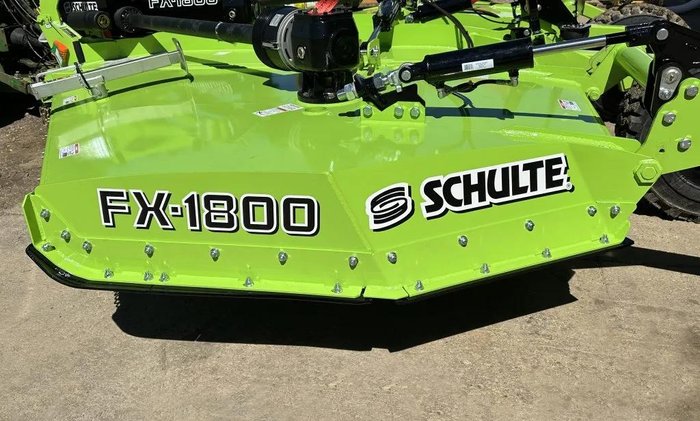

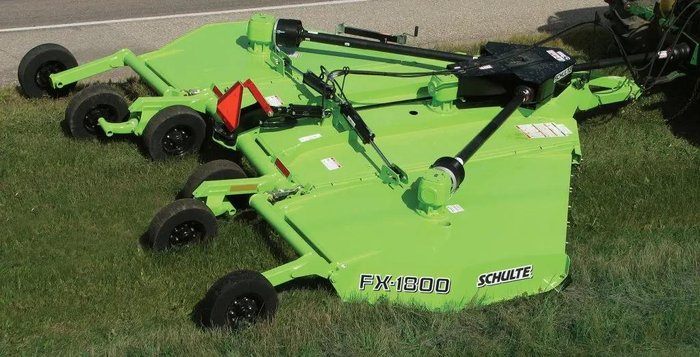

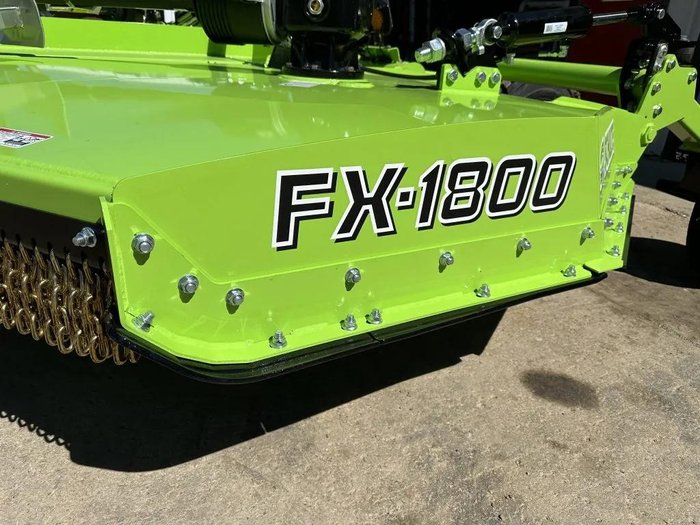

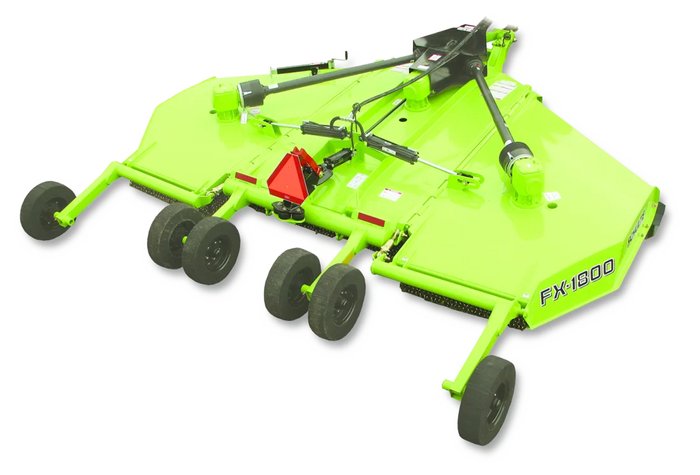

Schulte Fx-1800

15' Rotary Cutter. 540 OR 1000 PTO drive. Trailing hitch. 3 rotors. 260 & 210HP
gearboxes with independent slip clutches so nothing needs to be timed. 3 section, 7-
gauge domed deck with folding & floating wings. Deck protection rings. Stumpjump
pans. Single updraft blades. 4" cutting capacity. Single safety chains front &
rear with half rubber flaps. Dual wheels in centre, single wheels on wings, all with
puncture-proof laminated tyres. Heavy duty 3 grommet rear suspension. Dual
levelling rods.

Cutting Width 4.57 m (15')
Tractor PTO Speed 540 or 1000 RPM
Overall Width 4.83 m (15'8")
Cutting Height 45mm-425mm (1.74"-16.75")
Overall Length 5.13 m (16'8")
Cutting Capacity 101.6 mm (4")
Transport Width 2.36 m/2.59 m Single/Dual Wheels on wings
Divider Gearbox Rating 260HP
Transport Height 2.13 m (7')
Centre & Wing Gearbox Rating 225HP
Deck Thickness 7GA (3/16"",4.6mm)
Wing Working Range 25° down to 90° up
Weight 2096 - 2319kg
Wing Floating Range 25° down to 30° up
Recommended Tractor HP 85HP

Options: Mulching Blade in Lieu of Single Blades
Forklift Tyres
Double Safety Chains Front & Rear
Side Eject Option

Price: $66,000 ex GST
