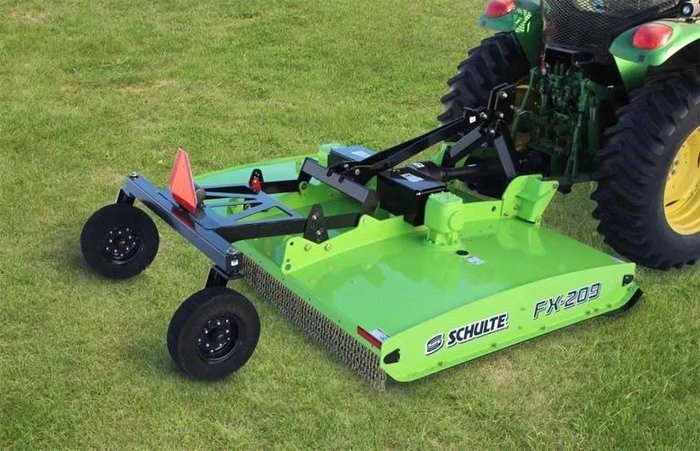

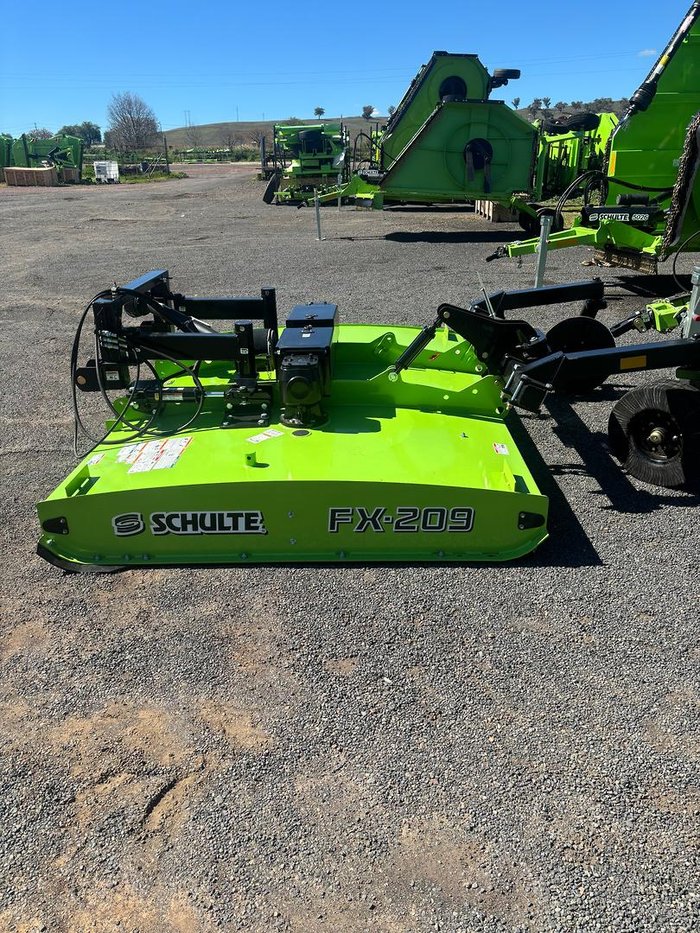

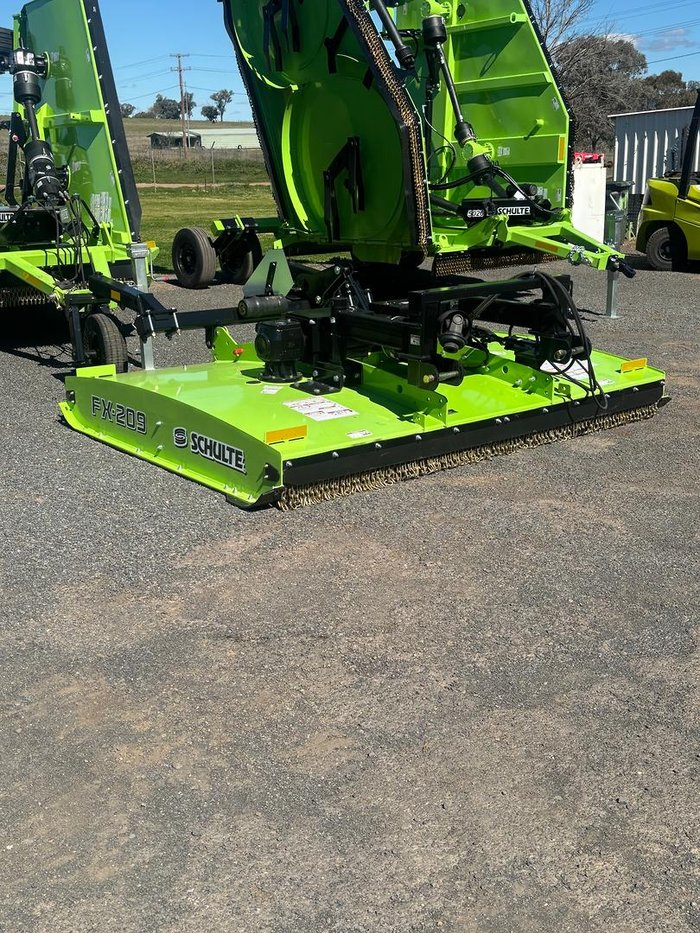

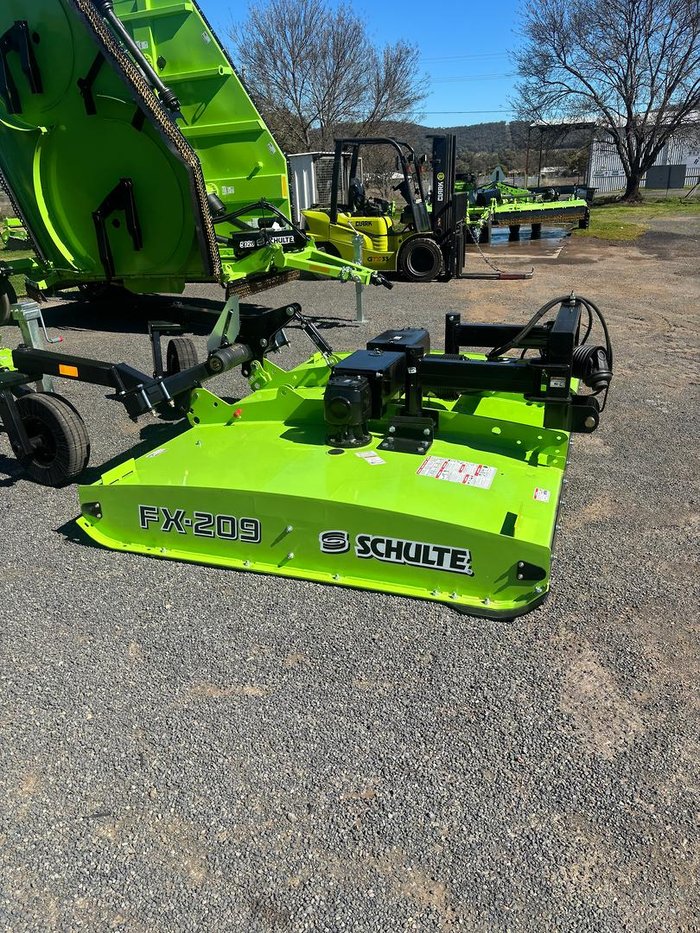

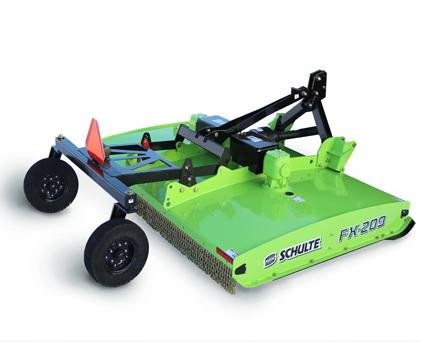

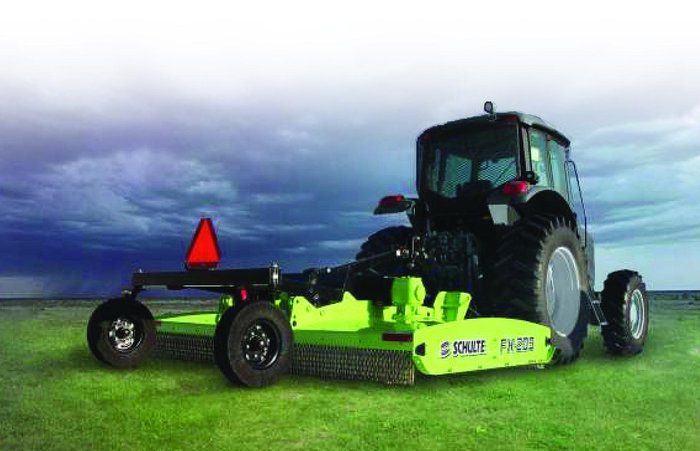

Schulte FX-209

540 PTO drive. Twin rotor. 170 & 210HP gearboxes with slip clutches. Domed deck. Deck protectionring. Stump-jump pans. Single updraft blades. 3" cutting capacity. Double safety chains & halfrubber flaps front & rear. Twin puncture-proof laminated tyres.

Overall Width 2.78 m (9' 1.25")
Cutting Width 2.13 m (7')
Overall Length 4.41 m Trailing Unit - 3.3 m Other Config.
Overall Width 2.96 m (9'8.5")
Transport Clearance 29.2 cm (11.5")
Minimum Tractor Size 85HP Linkage, 50Hp Trailed
Cutting Height 5.1 cm - 33 cm (2"- 13")
Side Skirt Thickness 6.35mm x 337mm (1/4" x 13.75")
Cutting Capacity 7.6 cm (3") Gearbox Rating 210HP (157kw)
Approx. Weight 952-1297 Config Depnd.
Blade Tip Speed 540 RPM - 17086 FPM
Hitch Type & III 3PL/Semi Mount Swing, Trailing Pull
Deck Thickness 7GA (3/16",4.6mm)

Options - Mulching Blades in lieu of single blades
Forklift Tyres in lieu of laminates
Side Eject Option

Price - Three Point Linkage - $35,000ex
Trailing Hitch - $37,500ex
Side Eject - Linkage - $39,000 ex
