Schulte FX-320

FX-320

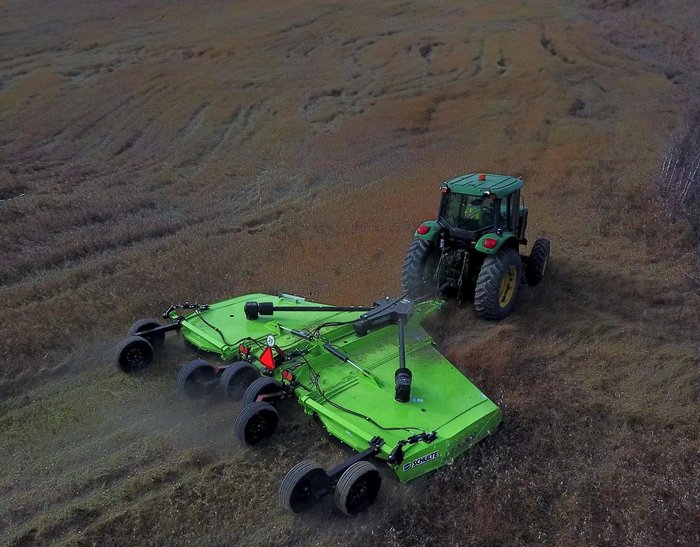

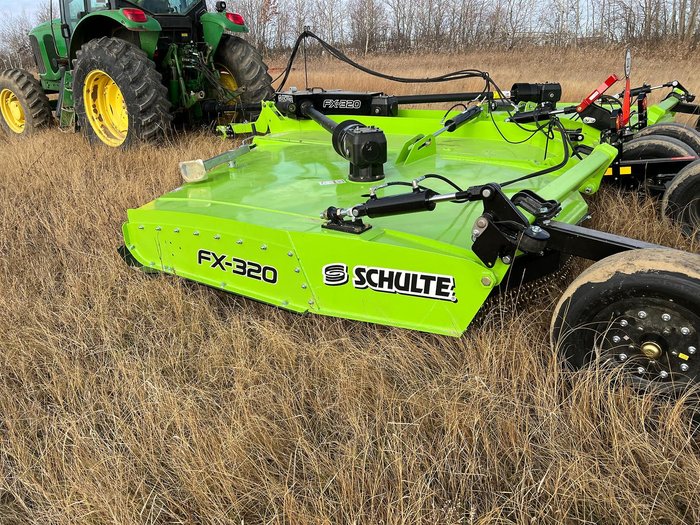

20ft 3 Rotor Slasher Equipped with Schulte Super Suction Blades with 6" blade overlap for maximum grass lift and cut . A four gearbox drive line with independent slip clutches
Deck protection rings are standard and protect the cutter deck from rising blades
Large, 15" deck depth, high blade tip speeds and long gearbox shaft provide a faster cut speed

Cutting Width - 6.1 m (20')
Tractor PTO Speed - 540 or 1000 RPM
Overall Width - 6.32 m (20")
Cutting Height - 51mm - 450 mm
Overall Length - 6.15 m (20'1")
Cutting Capacity - Fixed Knife 51mm, Pan Unit102mm

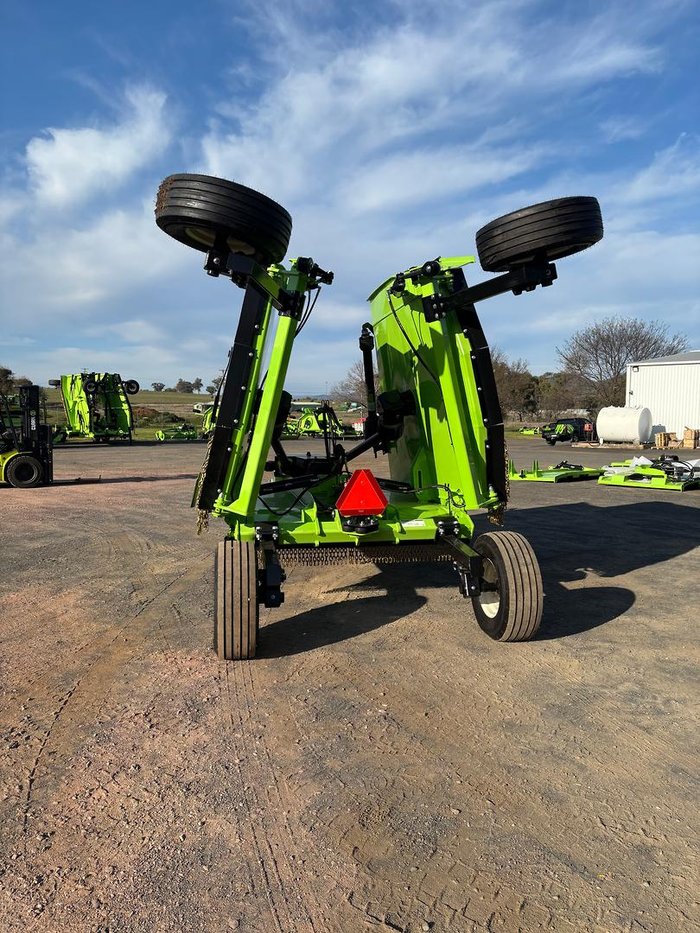

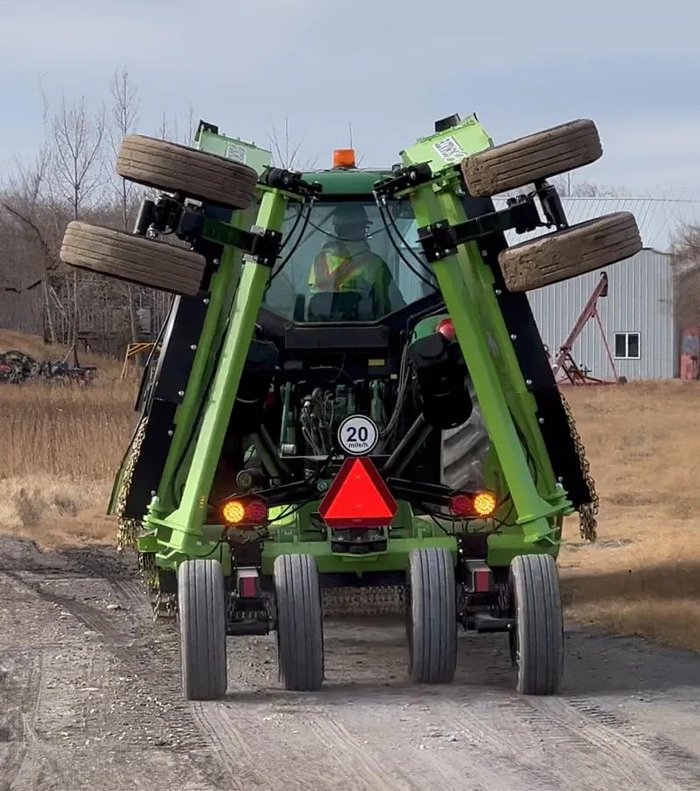

Transport Width - 2.40 m (8")
Transport Height - 3.05 m (10")
Centre & Wing Gearbox Rating - 225HP
Deck Thickness 7GA (0.180",4.6mm)
Wing Working Range - 20° down to 90° up
Weight - 4218kg
Wing Floating Range 20° down to 40° up
Recommended Tractor HP - 100HP

Options Available: Mulching Blades in Lieu of single blades
Side Eject


Starting Price - $85,000 + GST
