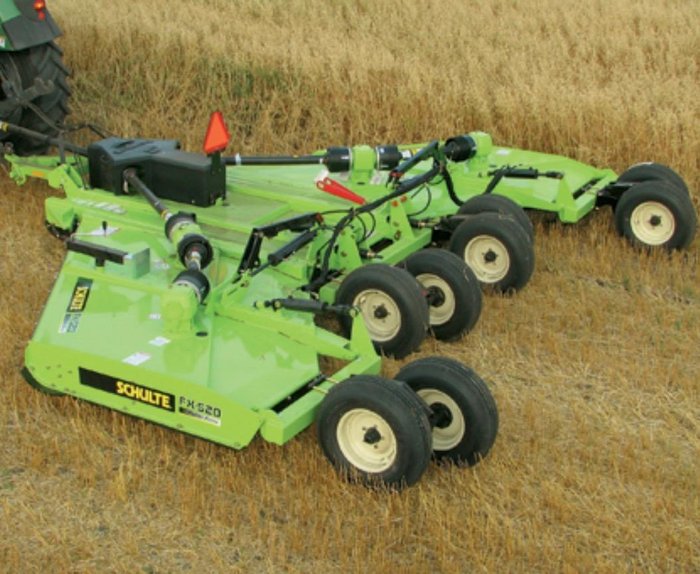

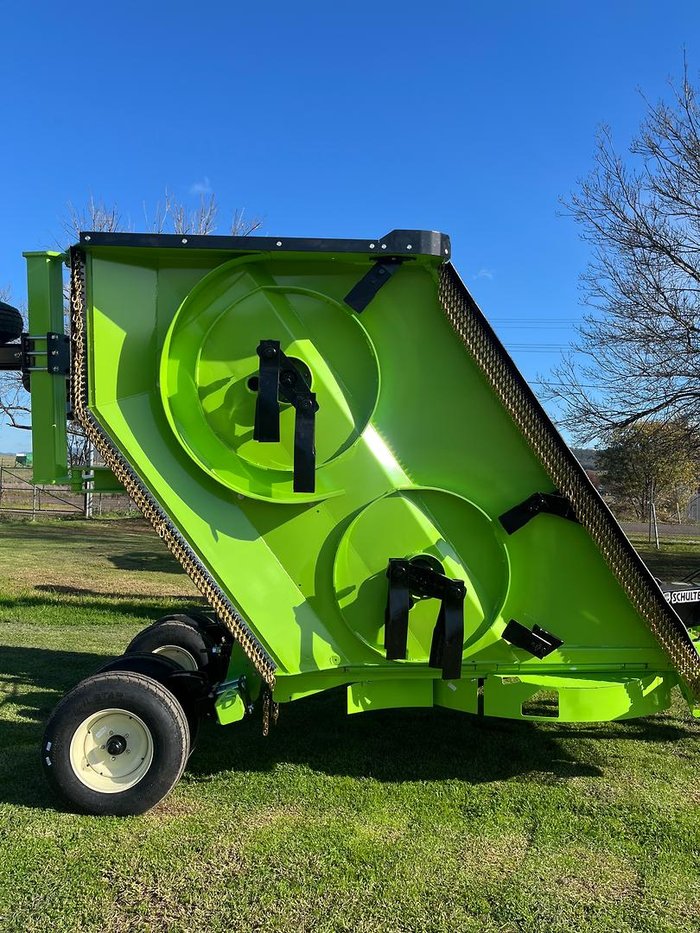

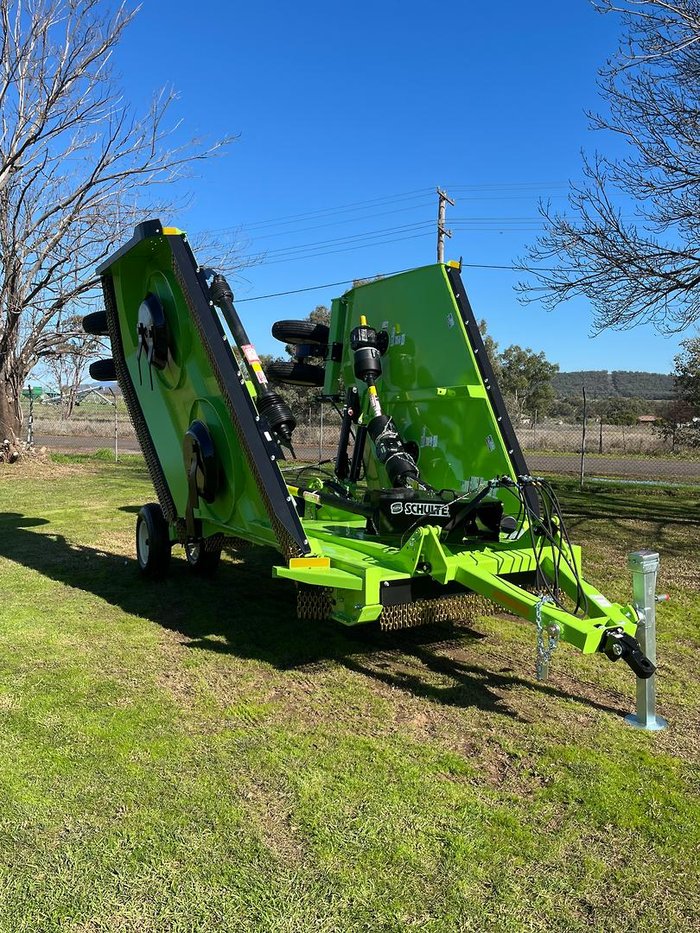

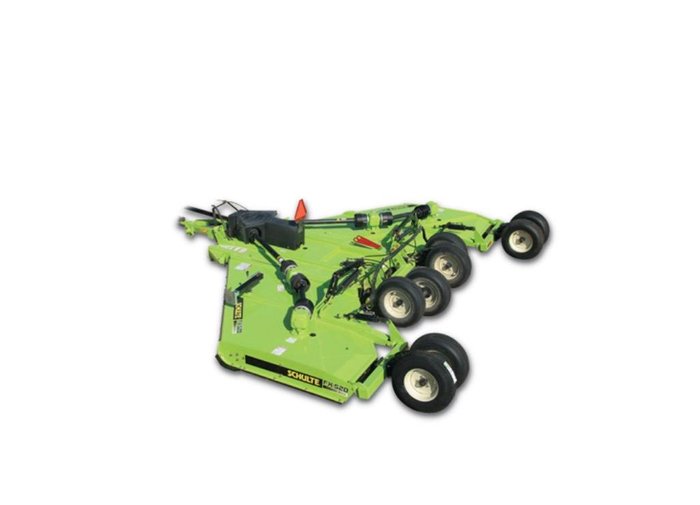

Schulte FX-520

20' Rotary Cutter. 1000 PTO drive. 5 rotors. 260 & 190HP gearboxes. 3 section, 7-gauge domed deck with folding & floating wings. Deck protection rings. Schulte's exclusive T Bar mulching kit with fixed knives and baffle technology for superior stubble mulching. Hydraulic level lift. Single safety chains & half rubber flaps front & rear. Single wheels on centre and wings all with pneumatic tyres.


Cutting width 6.1m (20')
Overall width 6.2m (20' 7")
Overall length 6.15 m (20' 2")
Transport width 2.32m(7' 7'')
Transport height 3.05m (10')
Deck thickness 7 GA (3/16", 4.6 mm)
Weight 2,960kg
Minimum tractor HP 100 HP (75 kW)
Tractor PTO speed 1000 RPM
Cutting height 51mm - 445mm (2" - 17.5")
Cutting capacity 89 mm (3.5")
Divider gearbox rating 260 HP (194 kW)
Centre & wing gearbox rating 225 HP (168 kW)
Wing working range 20° down to 90° up
Wing floating range 25° down to 40° up

Price: $101,500 ex GST
