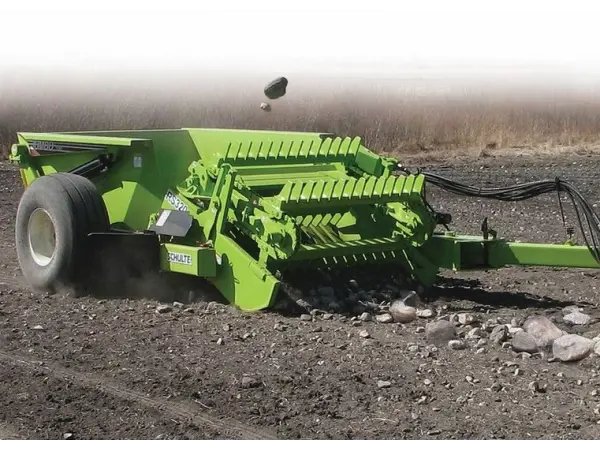

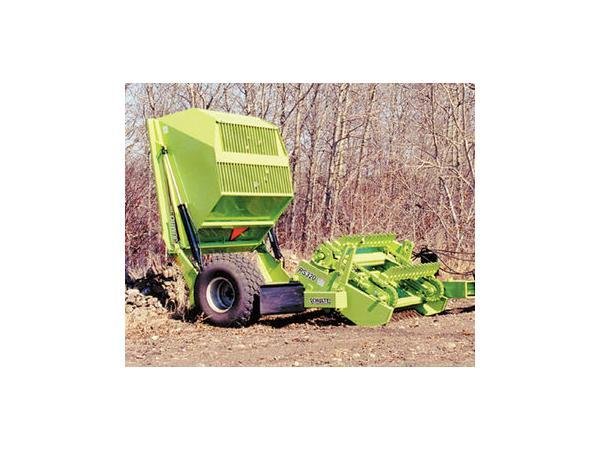

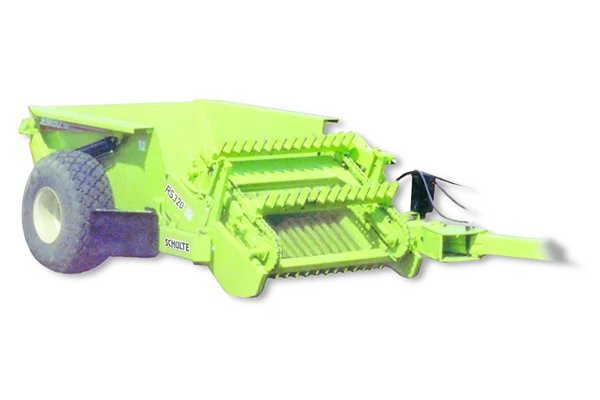

Schulte Rs320

Hydraulic drive motor. 5' pickup width. Floating, tapered T-iron grate. Picks rock

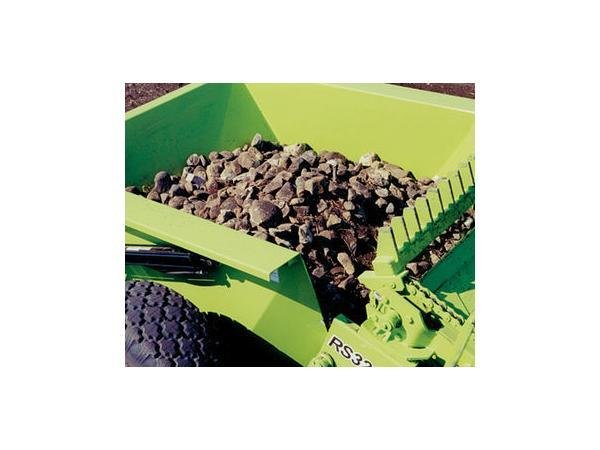

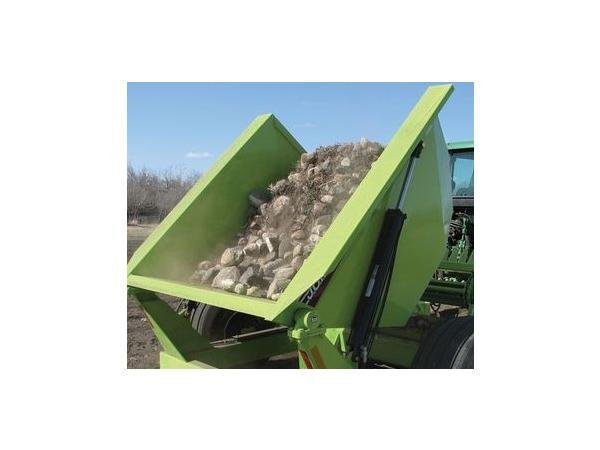

from 2"-28" diameter. 3.2 cu. yd. hopper. 45" dump height. Rock deflector on RHS
wheel. Tractor requires minimum dual hydraulics, 12 gallons/minute oil flow and
closed or load sensing hydraulic pump.

Weight - 2450kg
Overall Length - 5334mm (17'6")
Width with Tyres - 2972mm (9'9")
Width less Tyres- 2108mm (6'11")
Overall Height - 1346mm (4'5")
Hopper Capacity - 2.4m3
Dumping Height - 1140mm (3'9")
Tyre Size - 16.5L x 16.1
Minimum Tractor Size - 85HP (63kW)
Tractor Requirements:
Oil Flow - 45L/min
Hydraulic Pump Type - Closed Centre/Load Sensing
# Remote Sets - Two

Options - Hydraulic Swing Hitch Kit
Hydraulic Reservoir Kit
Open Centre Hydraulic Pump Kit

Price: $73,500 ex GST
