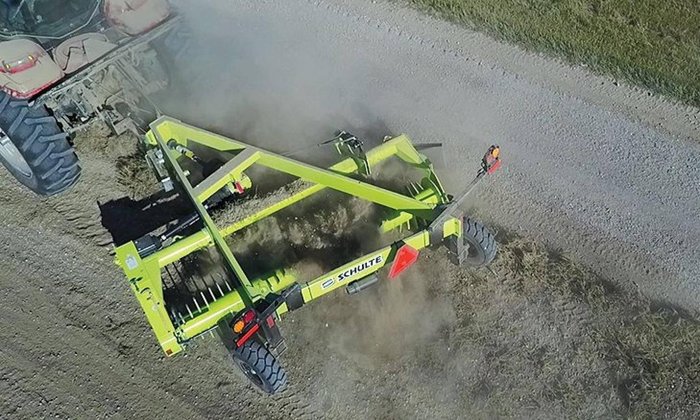

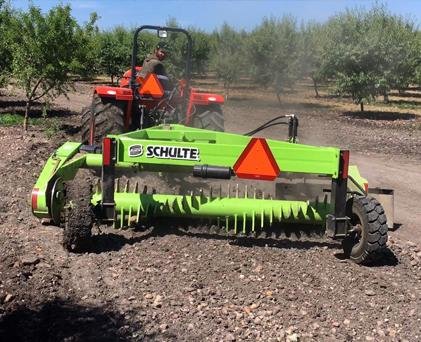

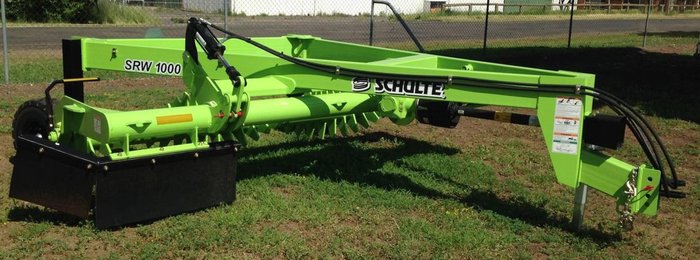

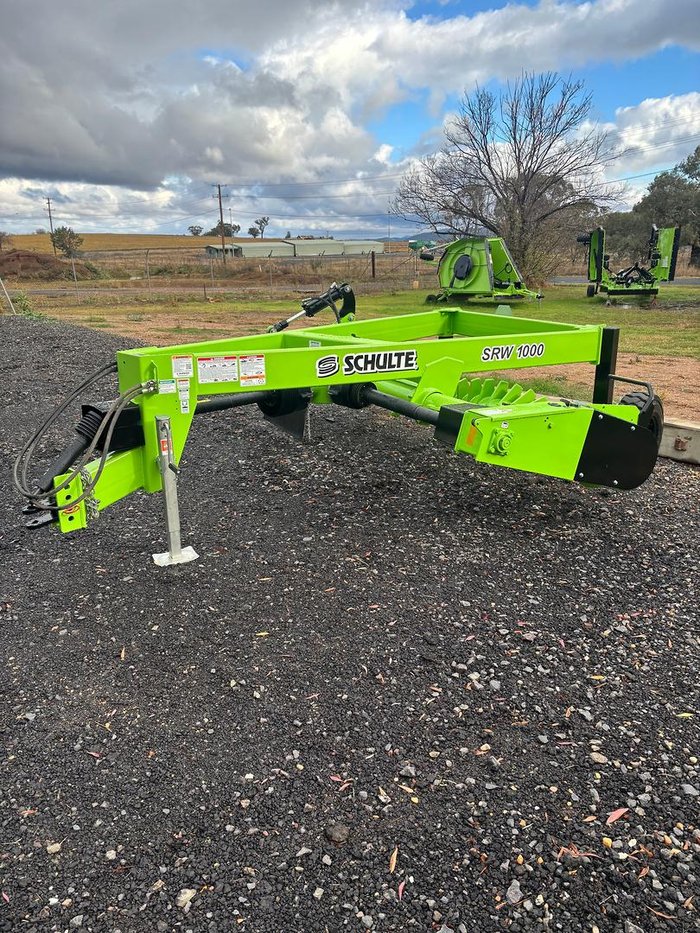

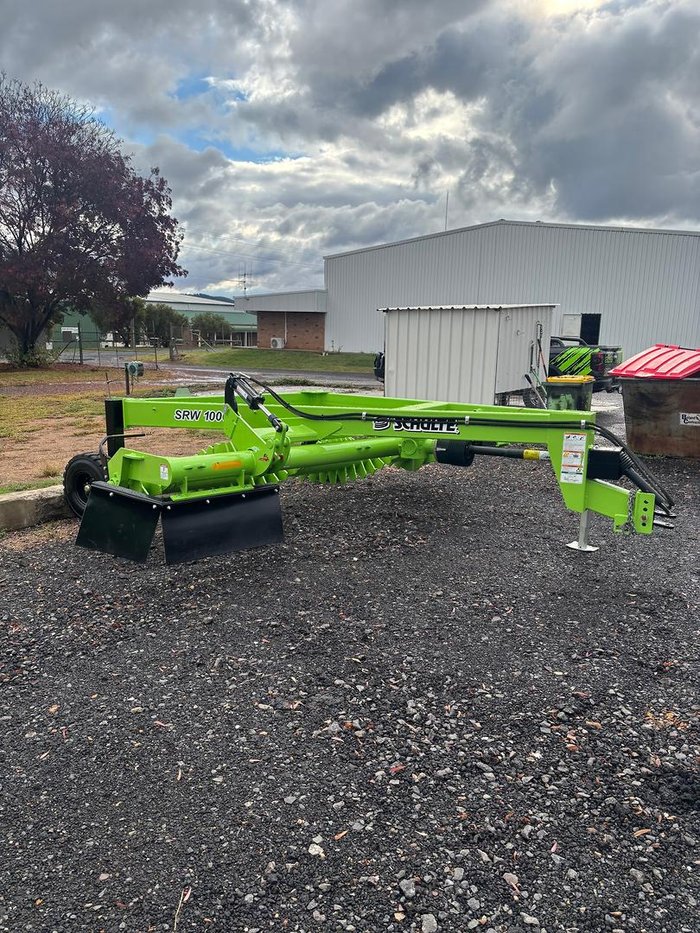

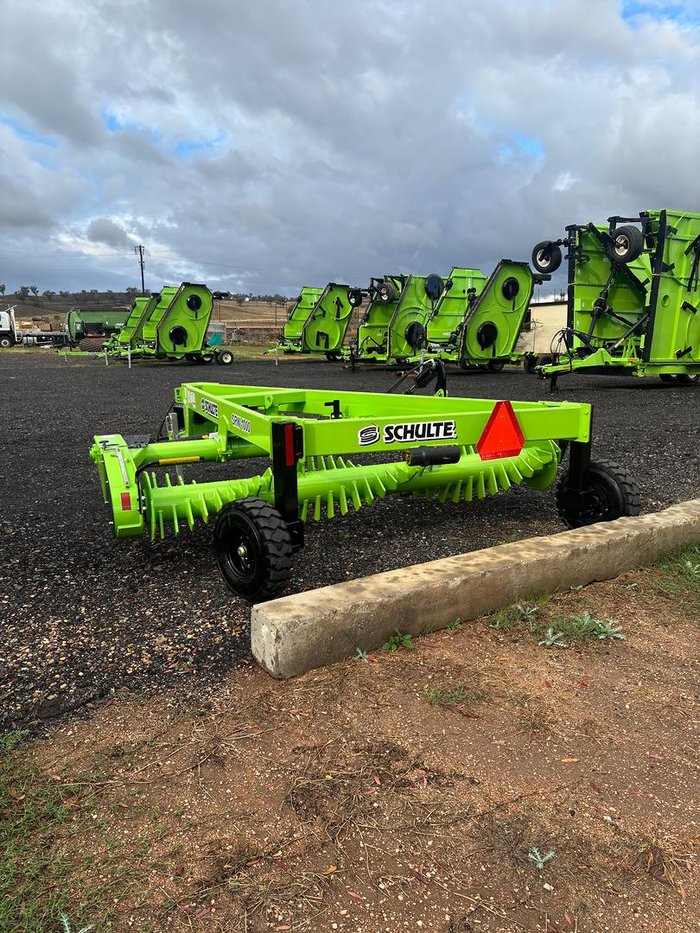

Schulte Srw1000

10' wide drum constructed of 8 5/8" (219mm) diameter heavy wall HSS pipe with
6" x 5/8" thick hard-faced teeth welded directly to drum. Drum angle is fixed. Shifts
rock from 2"-25". Heavy-duty 540 PTO drive with slip clutch and shear bolt
protection. 2 forklift tyres. Single hydraulics required on tractor.

Weight 1200 kg (2640 lbs)
Tractor size 40 - 80 HP (30 - 60 kW)
Drum width 3.05 m (10’)
Maximum ground speed 8 km/h (5 mph)
Recommended ground speed 3 km/h (2 mph)
Drum speed 117 RPM @ 540 RPM input
Tyres 700 X 15, 6 ply
Transport width 3.4 m (11’ 2")
Transport length 4 m (13’ 1")

Options - Hydraulic Drive

Price- $41,000 ex GST
