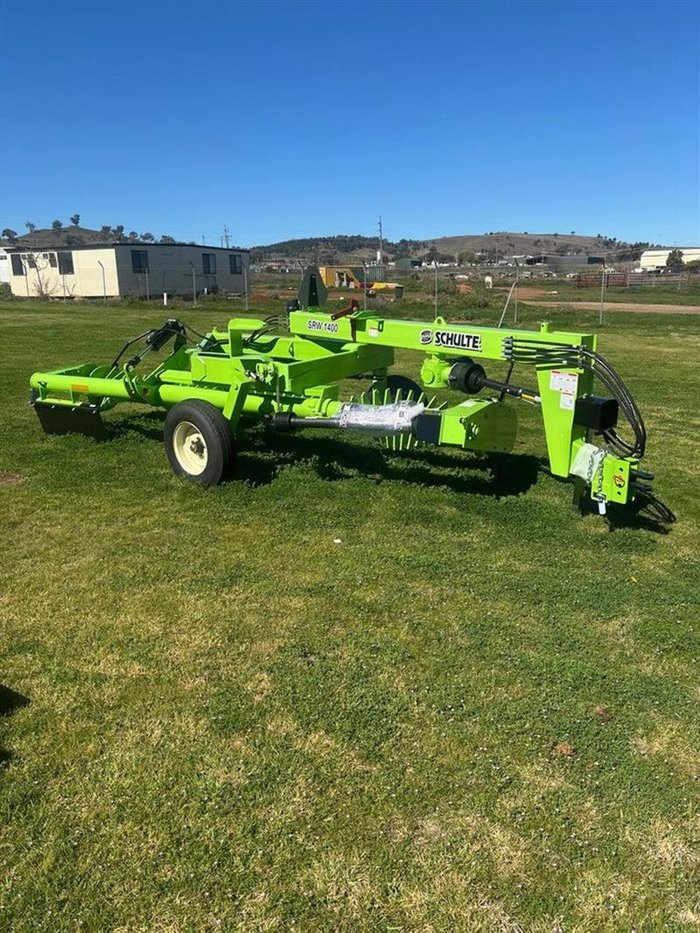

Schulte SRW1400

14' wide drum constructed of 8 5/8" (219mm) diameter heavy wall HSS pipe with
6" x 5/8" thick hard-faced teeth welded directly to drum. Drum angle is fixed. Shifts
rock from 2"-25". Machine folds to under 8' wide for transport. Heavy-duty 540
PTO drive with slip clutch and shear bolt protection. 3 pneumatic tyres. Dual
hydraulics required on tractor.

Weight 1588 kg (3500 lbs.)
Tractor size 40 - 80 HP (30 - 60 kW)
Drum width 4270 mm (14’)
Maximum ground speed 8 km/h (5 mph)
Recommended ground speed 3 km/h (2 mph)
Drum speed 117 RPM @ 540 RPM input
Tyres 9.5 L - 15, 6 ply
Transport width 2.36 m (93")
Transport length 5.97 m (19’ 7")

Options - Hydraulic Drive with Bolt on Teeth

Price $55,500 ex GST
