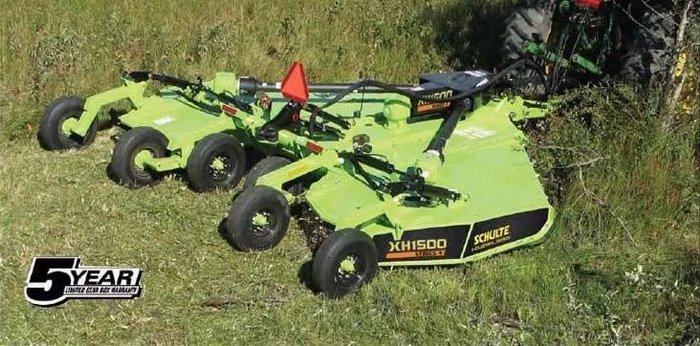

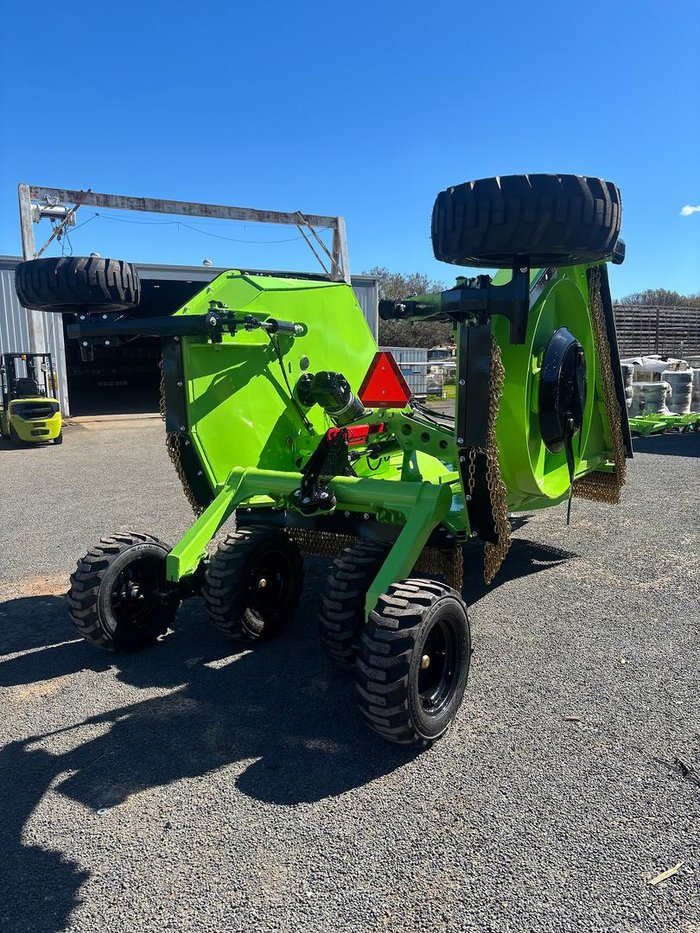

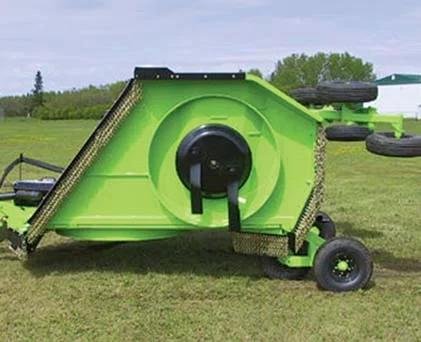

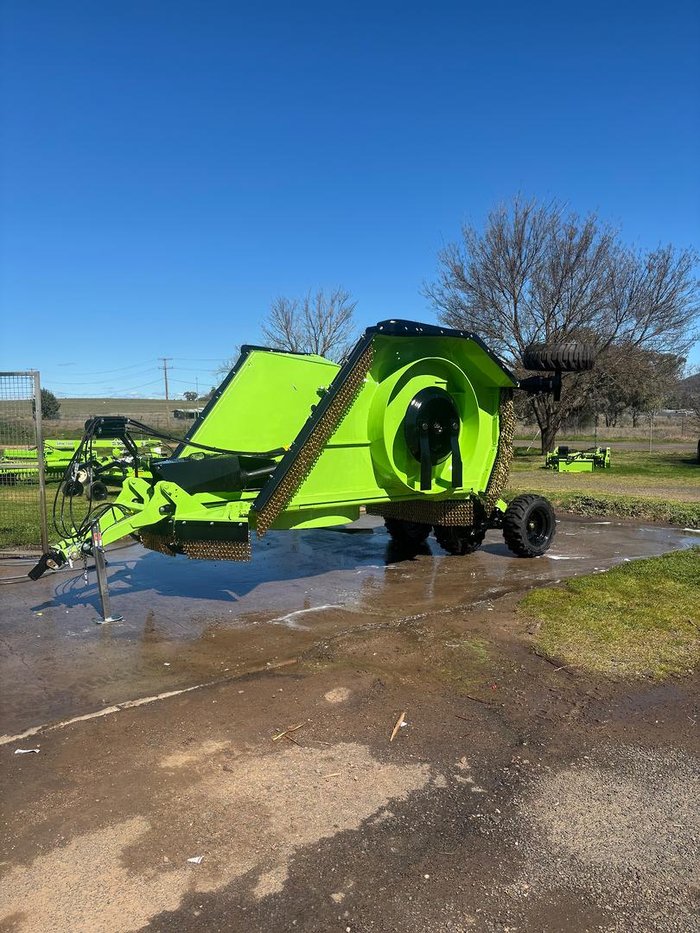

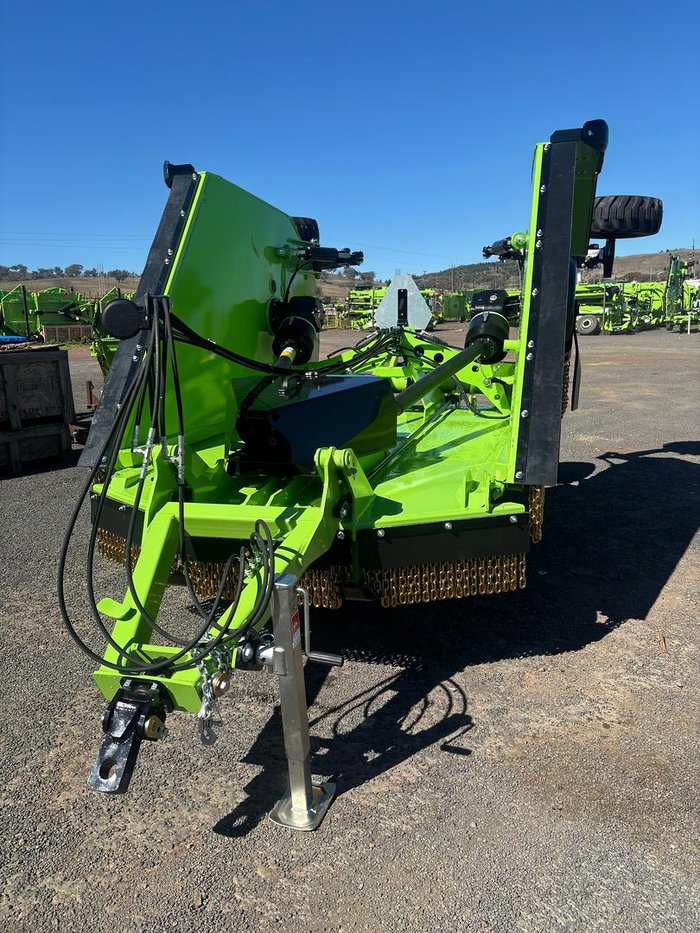

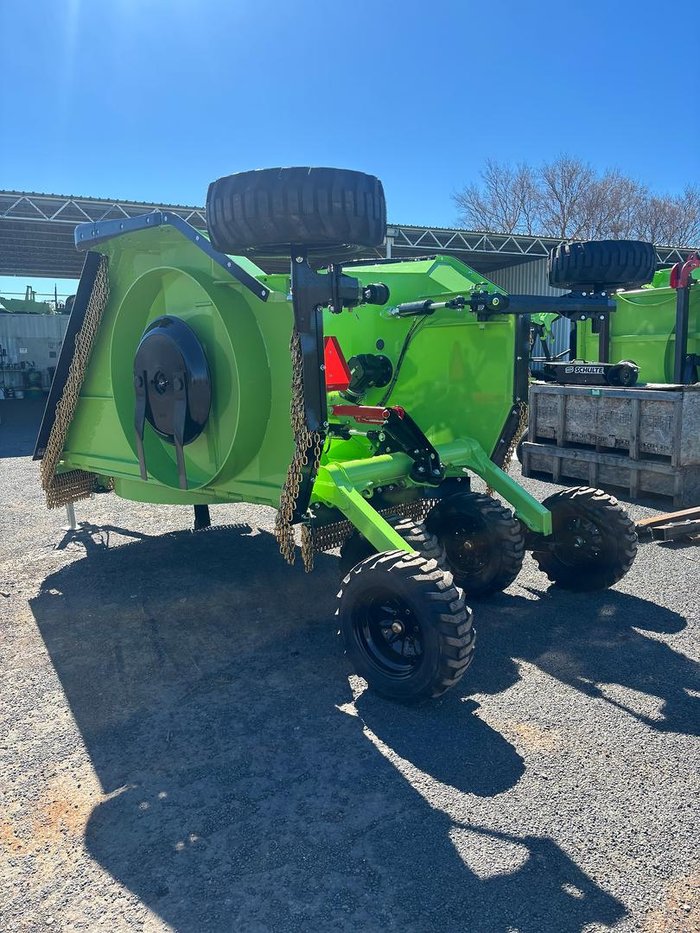

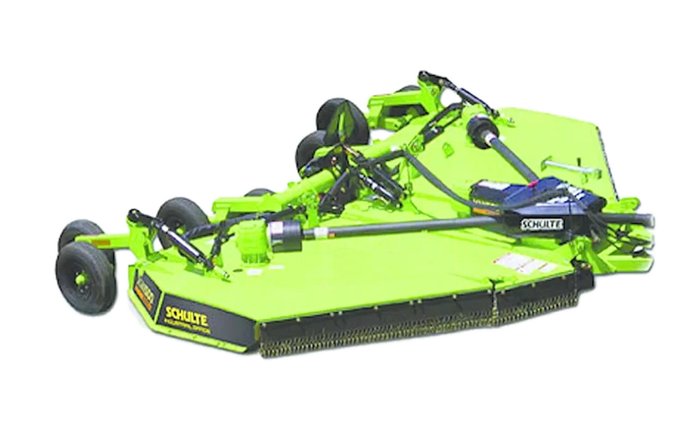

Schulte XH1500

15' Industrial strength rotary cutter. 540 or 1000 PTO drive. 3 rotors. 275 & 240HP
extra heavy duty Bondioli gearboxes with oil level sight glass, 1 3/4" input shafts &
3" output shafts. Bondioli G8 drive lines with independent high torque slip
clutches so nothing needs to be timed. 3 section, 7-gauge domed deck with folding
& floating wings. Deck protection rings. Stump-jump pans. Single updraft blades. 5"
cutting capacity. Double safety chains front & rear with half rubber flaps. Tandem
walking beams in centre and single wheels on wings, all with puncture-proof
laminated tyres.

Cutting Width 4.57 m (15')
Tractor PTO Speed 540 or 1000 RPM
Overall Width 4.8 m (15'8")
Cutting Height 38mm - 490mm
Overall Length 5.26 m
Cutting Capacity 125 mm (5")
Transport Width 2.26 m
Divider Gearbox Rating 275HP
Transport Height 2.13 m (7')
Centre & Wing Gearbox Rating 240HP
Deck Thickness 7GA (3/16"",4.6mm)
Wing Working Range 25° down to 90° up
Weight 3152kg
Wing Floating Range 25° down to 45° up
Recommended Tractor HP 110HP

Options: Mulching Blade in Lieu of Single Blades
Bobcat Tyres
Single Wing Independent Fold

Price: $85,000 ex GST
