Schulte RS320 Jumbo Rock Picker

Huge 3.2 cubic yard hopper with conveyor pickup.

  • The RS320 features an extra-large 2.43 m3 (3.2 cubic yard) hopper for greatly increased rock removal efficiency.
  • Hopper holds approximately 4.2 tonne of rock.
  • Large all-weather 16.5L x 16.1 flotation tyres are mounted on high capacity eight bolt wheels and hubs.
  • The RS320 Rock Picker removes surface rock from 2" to 28" (50 to 700 mm) diameter.
  • T-iron tapered grate with a 13 mm (1/2") gap at the bottom and 19 mm (3/4") at the top virtually eliminates small rock jamming.
  • The 1219 mm (48") grate, which is 431 mm longer than most reel type rock pickers on the market, picks 50% less dirt and trash than reel types because it allows more time to sift the soil out before the rock enters the bucket.
  • Optional hydraulic swing hitch to open and close the machine without leaving the tractor seat. Great for getting through narrow gates or around obstacles.
  • Use the RS320 to pick up rocks, timber, trash, carcasses…the list goes on and on!

The RS320 Jumbo just loves big rock!

Large floatation tyres minimise soil compaction and provide suspension.

The Jumbo will pick rock from tennis ball size up to a small esky.

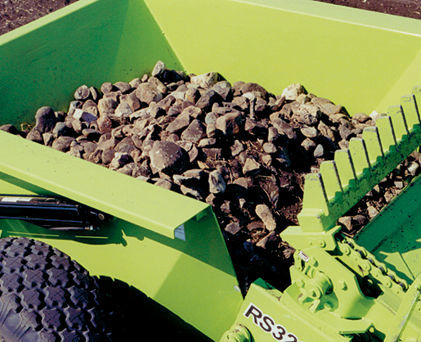

The long pickup grate and grated bottom in the bin sifts out soil and leaves the rock in the bin.

RS320 Jumbo Specifications and Pricing

Weight

2450 kg (5390 lbs.)

Overall length

5334 mm (17’ 6”)

Width with tyres

2972 mm (9’ 9”)

Width less tyres

2108 mm (6’ 11")

Overall height

1346 mm (4’ 5")

Hopper capacity

2.4 m3 (3.2 cu. yds.)

Dumping height

1140 mm (3’ 9”)

Tyre size

16.5L x 16.1

Tractor requirements

Minimum 85 HP (63 kW), Dual hydraulics, Closed centre or load sensing hydraulic pump with 45 L/min (12 G/min) oil flow (optional kits available if pump requirements not met)

Picks rocks

5 - 70 cm (2”-28”)

Current Price

$66,600.00

*Price is quoted ex-Wellington and includes GST. Price subject to change without notice. Unit options and delivery costs additional. Click on the enquire now icon for our best price delivered to you.

The Jumbo is always hungry for more!

The 3.2 cubic yard bin is one of the biggest on the market.

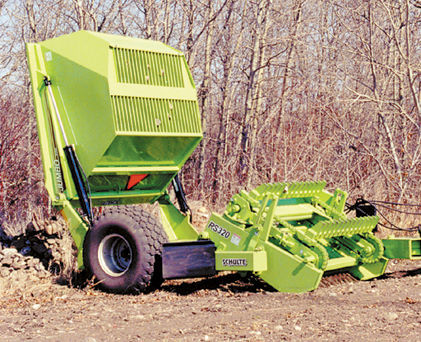

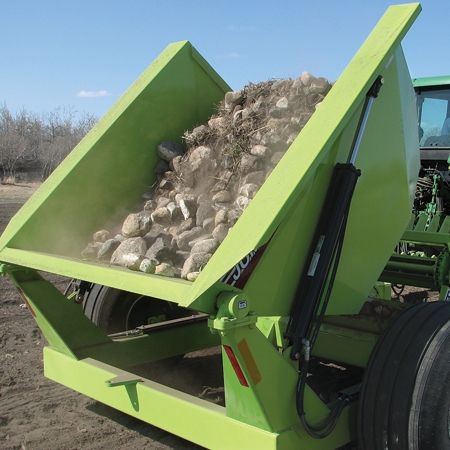

Heavy-duty hydraulic cylinders make for easy and reliable dumping.

The 1140 mm dump height quickly builds a big pile of rock.

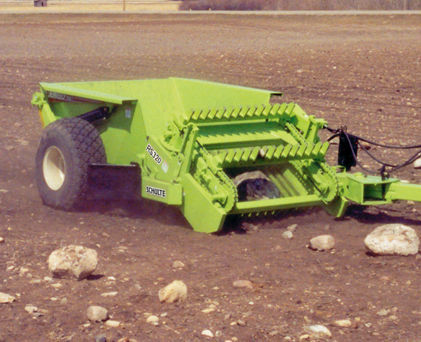

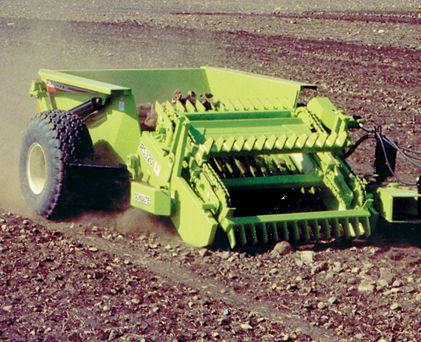

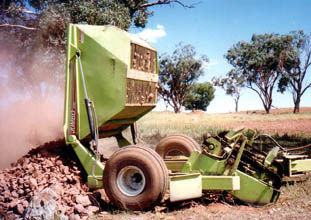

The RS320 Jumbo at work...

Courtesy of Schulte Industries Ltd.
