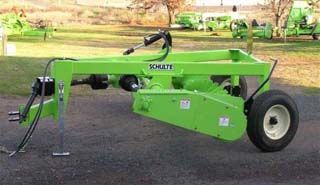

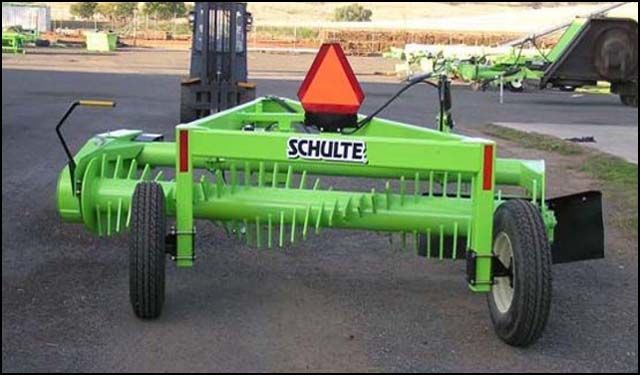

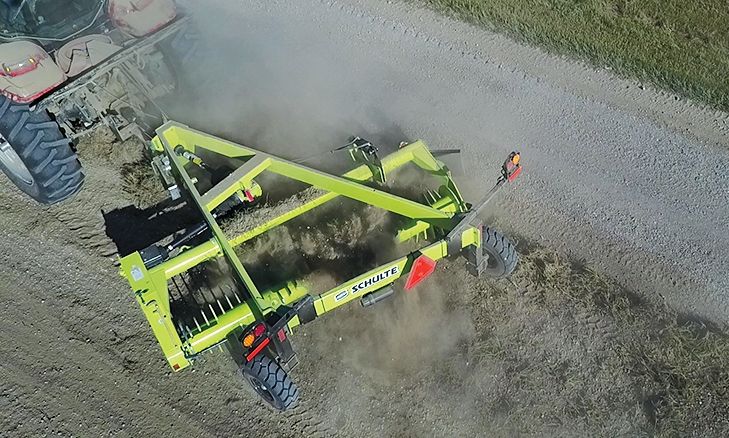

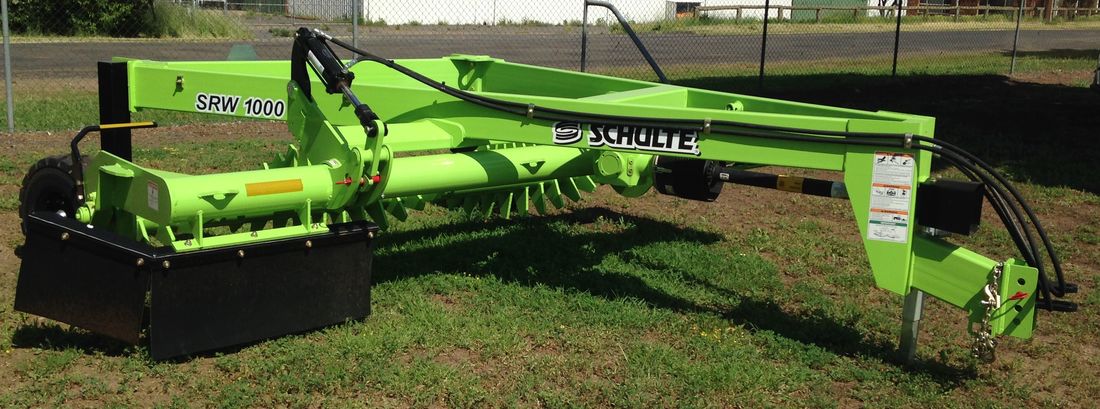

Schulte SRW1000 Rock Windrower

A mid-size machine with roto-tilling action that breaks up lumps and levels the ground.

  • Transports at 3.4 m (11’2”) allowing you to go through a 12-foot gate.

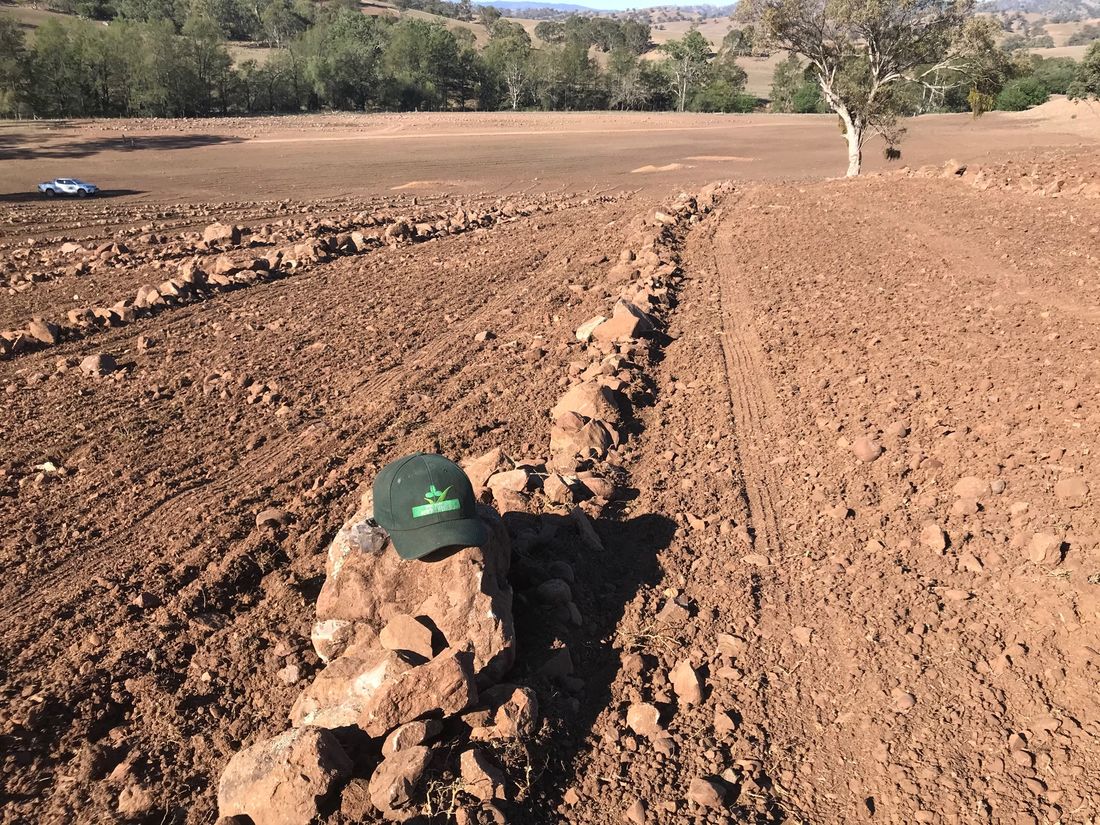

  • Windrows 2” to 25” rocks with ease, forming them into uniform rows ready for pick up by a Schulte Rock Picker.
  • Roots, stumps, chips and other debris from land clearing operations can also be windrowed.
  • Power is supplied to the windrower drum via a heavy-duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads.
  • The final drive chain is totally enclosed for longer service life.
  • The windrower drum is 3.05 m (10’) wide and is constructed of 219 mm (8 5/8”) heavy wall HSS tube.
  • Patented floating drum results in excellent ground following characteristics.

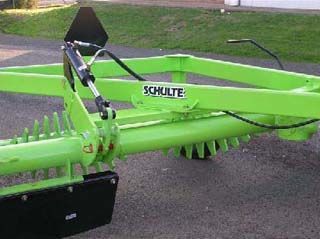

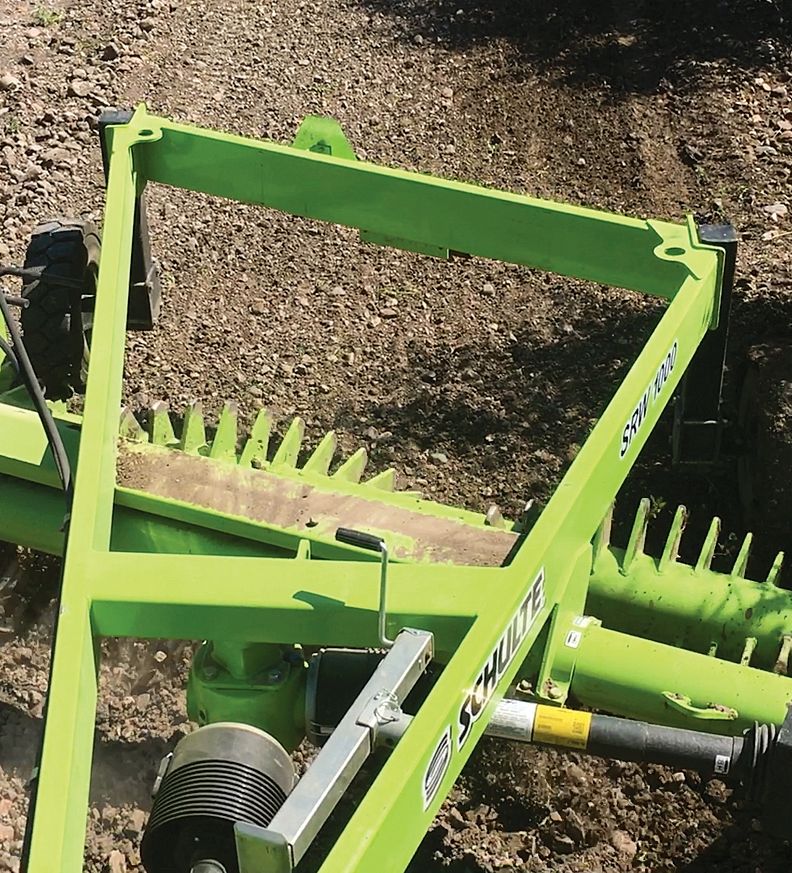

  • Hard surfaced, 15.9 mm (5/8") thick x 152.4 mm (6") long teeth are welded directly to the drum pipe, resulting in problem free operation even in difficult conditions.
  • The long teeth increase the combing action of the rake for superior windrowing.
  • As a bonus, the windrower has a roto-tilling action, which breaks up lumps and level the ground.
  • The side delivery frame arrangement allows the operator to better control the size of windrows, regardless of rock conditions.
  • Full one-year warranty on materials and workmanship.

SRW1000 Specifications

Weight

1200 kg (2640 lbs)

Horsepower required

40 - 80 HP (30 - 60 kW)

Drum width

3.05 m (10’)

Maximum ground speed

8 km/h (5 mph)

Recommended ground speed

3 km/h (2 mph)

Drum speed

117 RPM @ 540 RPM input

Tyres

700 X 15, 6 ply

Transport width

3.4 m (11’ 2”)

Transport length

4 m (13’ 1”)
