Schulte SRW800 Rock Windrower

Small in size but big on performance!

  • A three-point linkage machine that can be driven by smaller tractors from 35 HP.
  • Narrow, 2591 mm (8’ 6”) transport width.
  • Windrows 2" to 25" rocks with ease, forming them into neat uniform rows ready for pick up by a Schulte Rock Picker.
  • Roots, stumps, chips and other debris from land clearing operations can also be windrowed.

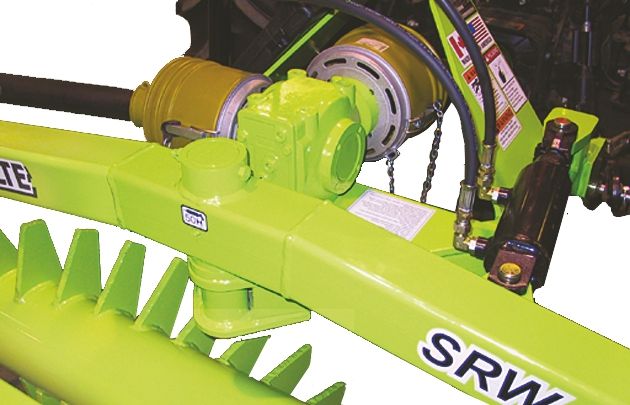

  • Power is supplied to the windrower drum via heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads.

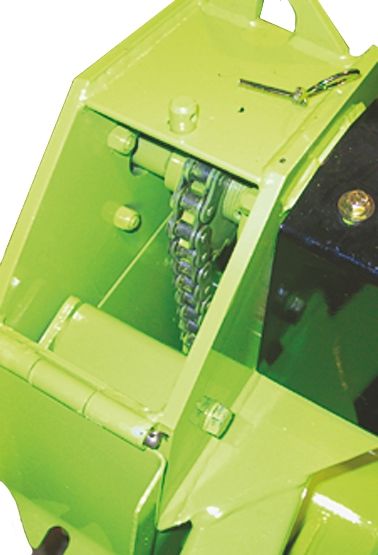

  • The final drive chain is totally enclosed for longer service life.
  • The windrower drum is constructed of 219 mm (8 5/8") heavy wall tube.
  • Hard surfaced 9 mm (5/8") thick x 152.4 mm (6") long teeth are welded directly to the drum, resulting in problem-free operation.
  • The long teeth increase the combing action of the rake for superior windrowing.
  • Full one-year warranty on materials and workmanship.

SRW800 Specifications

Weight

613 kg (1350 lbs.)

Horsepower required

35 HP to 100 HP (30 - 60 kW)

Drum width

2215 mm (88 5/8")

Maximum ground speed

8 km/h (5 mph)

Recommended ground speed

3 km/h (2 mph)

Drum speed

102 RPM @ 540 input

Tyres

16.5/6.5 x 8

Transport width

2591 mm (8’6”)

Transport length

1702 mm (67")
