Schulte 5026 Rotary Cutter

Proven reliability and performance since 1992.

  • Get the job done fast with over 26' of cutting width.
  • Cut everything from crop stubble to light brush.
  • 1000 RPM drive line with heavy duty slip clutches and 80° constant velocity u-joint.
  • 2-piece replaceable skid shoes on wings.
  • 10 gauge deck with deck protection rings.
  • 6 or 8 7.00 x 15 light truck tyres.
  • Hydraulic phasing cylinders for level lift.
  • Double acting wing lift cylinders with mechanical float.
  • 50° splitter box keeps drive lines short and machine more compact.

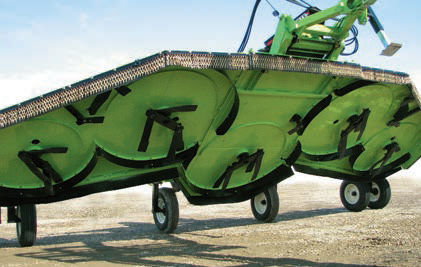

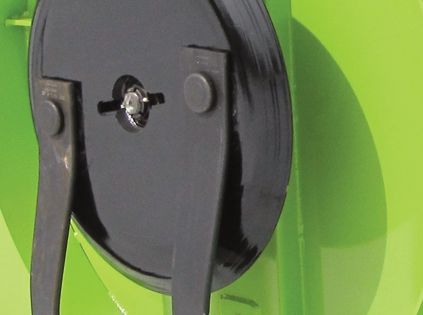

  • An optional fixed shredding blade kit is available for enhanced shredding.
  • Spring steel bushings at all major pivot points.
  • Suspension for centre and wing frames.
  • Round skid pans on standard unit.

5026 Specifications

Cutting width

7.98 m (26’ 2”)

Overall width

8.15 m (26’ 9”)

Overall length

5.13 m (17” 1”)

Cutting height

25 mm - 356 mm (1" - 14")

Overall transport width

2.98 m (9’ 9”)

Overall transport height

3.76m (12’ 4”)

Shipping weight, wet

3583 kg (7900 lbs.)

Hitch weight, transport

1089 kg (2400 lbs.)

Cutting capacity

51 mm (2") diameter material

Minimum tractor HP

120 HP (90 kW)

Tractor hydraulics

2 double acting circ, 1750 PSI (12 MPA)

Blade RPM and tip speeds



Wing outer

974 RPM-15,300 ft/min (280 km/hr)

Wing inner

812 RPM-15,300 ft/min (280 km/hr)

Centre

800 RPM-15,079 ft/min (276 km/hr)

Working Range of Wings

15° down to 45° up

Blade overlap

152 mm (6") centre to wing, 127 mm (5”) inside to outside wing

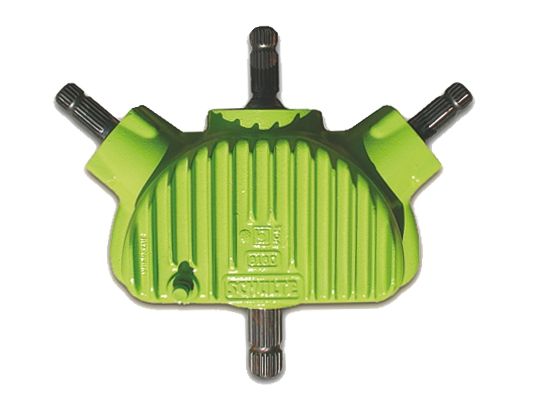

50° splitter allows for unique rotor layout.

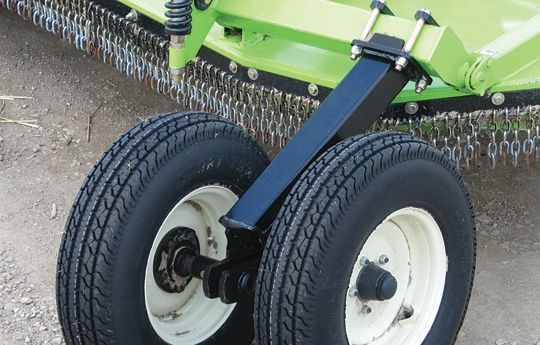

Available with walking wheels (shown) or adjustable row crop wheels.
