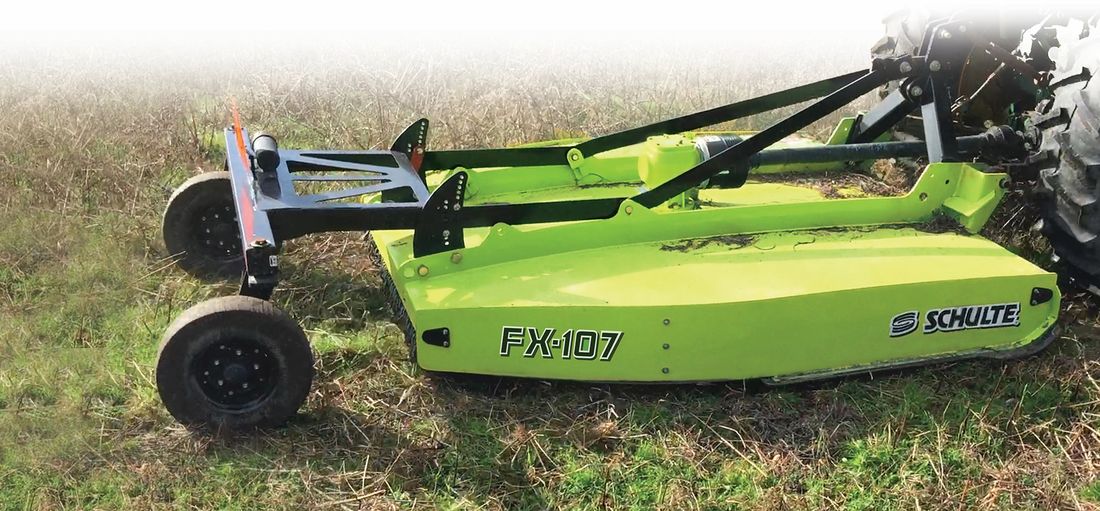

Schulte FX-107 Rotary Cutter
Versatile and tough 7’, Single Rotor Domed Deck Mower.
Schulte Cutters are renowned for being the toughest and most dependable slashers on the market. The FX-107 continues this tradition at an economical price, making it an excellent choice for slashing weeds, orchards, plantations, and roadsides. Schulte owners appreciate the high-performance features of their cutter:
- A single domed 7-gauge continuously welded deck offering many benefits:
- It is extremely easy to clean,
- The dome prevents water pooling and rusting,
- It helps shed debris as you cut, and
- Weighs less than double decks.
- Trailing and 3-point linkage options.
- 540 RPM drive, heavy duty gear box and drive line.
- Our drivelines utilise the latest heavy-duty and extremely reliable Bondioli gearboxes with oil level sight glass on the rotor boxes for convenient maintenance checks.
- 210 HP rotor gearbox.
- 6 mm x 100 mm deck protection rings protect the deck from blade impact.
- Spun formed 7-gauge stump jumper (round skid pan) ensures durability and balance.
- Larger pan with shorter blades provides more durability.
- Schulte Industries exclusive Pentagon Blade Bolt provides maximum anti rotational resistance where the blade is fastened to the stump jumper pans.
- Standard with Super Suction 1/2" x 4” blades that leave nothing behind. Schulte blades are strengthened through a hardening process which increases the impact strength of the blade. The blade is chamfered around the blade bolt hole to provide a smooth transition of surfaces around the high stress blade bolt area. The blades are also shot peened to induce beneficial compressive surface stresses over the entire length of the blade. This enhances the durability and extends the fatigue life of the blade. The cutting edge is forged giving it a stronger and tougher edge thereby extending the life of the blade.
- Optional mulching blades available.
- Deep side skirts and high blade tip speeds for the best cutting performance and material flow.
- Safety first with double chains and half rubber flaps front and rear and a durable driveline cover.
- Twin castor wheels with puncture-proof laminated or heavy-duty forklift tyre options.
- Two-piece replaceable skid shoes made from 10 mm thick abrasion resistant steel.
- Tapered rear end to avoid obstacles when turning.
The domed deck makes for easy cleaning and water dispersal.

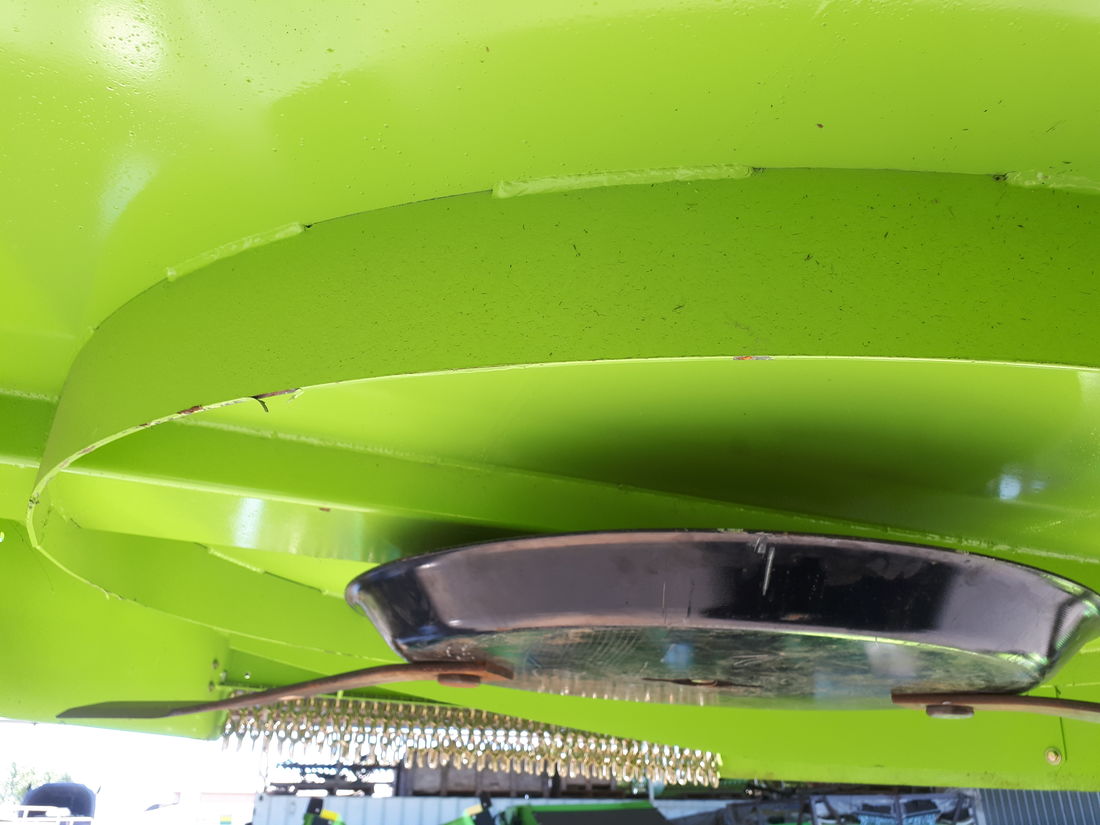

Stump jump pans, updraft blades and deck protection rings are standard.

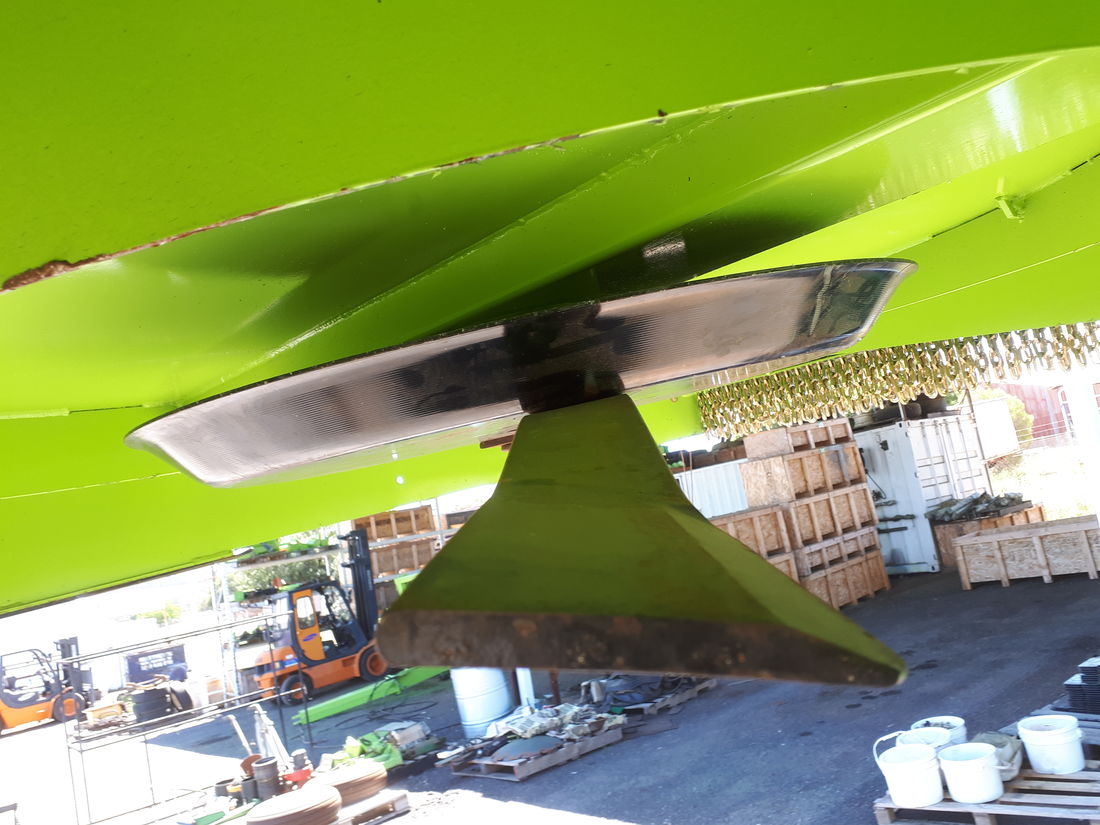

Schulte's super-suction blades hold material in the unit longer for a finer cut.

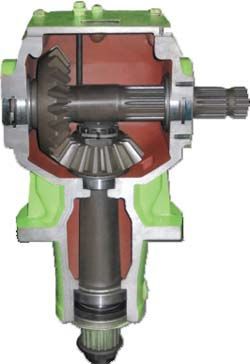

Heavy duty Gearbox, same unit as on our XH-1500 Series 3 Industrial Grade Cutter.
FX-107 Specifications and Pricing
| Cutting width |
4.57 m (15’) |
| Overall width |
4.83 m (15’ 10”) |
|
Overall length |
5.13 m (16’ 10”) |
|
Transport width |
2.36 m (7’ 9”) |
| Transport height |
2.13 m (7’) |
| Cutting height |
45 mm - 425 mm (1.75" - 16.75") |
| Cutting capacity |
101.6 mm (4") |
|
Approximate weight |
2,319 kg |
|
Hitch weight |
772 kg |
|
Deck thickness |
7 GA (3/16", 4.6 mm) |
|
Side skirt depth & thickness |
346 mm (13.63") & 6.35 mm (1/4”) |
|
Power Divider gear box rating |
260 HP (194 kW) |
|
Centre & Wing gearbox rating |
210 HP (157 kW) |
|
Blade tip speed - 540 RPM |
|
|
Centre Wing |
4,871 m/min (15,980 ft/min) 4,711 m/min (15,459 ft/min) |
|
Blade tip speed - 1000 RPM |
|
|
Centre Wing |
4,869 m/min (15,974 ft/min) 4,788 m/min (15,708 ft/min) |
|
Blade overlap |
165.1 mm (6.5") |
|
Wing working range |
25° down to 90° up |
|
Wing floating range |
25° down to 30° up |
|
Tractor PTO speed |
540 or 1000 RPM (dependent on unit drive shaft) |
|
Drive size - tractor shaft |
Cat. 6 CV (540 RPM), Cat. 5 CV (1000 RPM) |
|
Drive size - centre & wings |
Category 5 |
|
Minimum tractor HP |
50 HP (37 kW) |
|
Recommended tractor HP |
85 HP (63 kW) |
|
Deflectors |
Single Chains & Half Rubber Flaps Front & Rear |
|
Suspension |
Rubber grommet 3 puck system |
|
Current Price (single blades & laminate tyres) |
$72,456.00 |
|
Options Pricing |
|
|
Mulching Blades in lieu of singles Forklift Tyres in lieu of laminates Side Eject Option (per side) |
$1,180.00 $1,300.00 $3,250.00 |
*Price is quoted ex-Wellington and includes GST. Price subject to change without notice. Unit options and delivery costs additional. Click on the enquire now icon for our best price delivered to you.

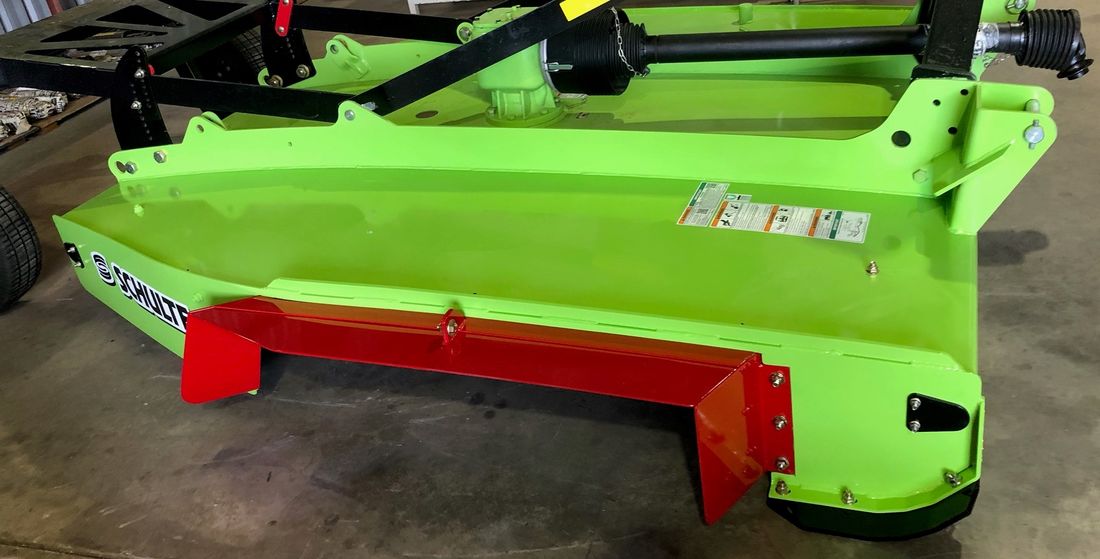

FX-107 Side Eject Option
Our side eject option has been designed in Australia for plantations, orchards and horticulturalists requiring cut material to be spread under trees as a mulch layer. The system features an adjustable exit chute. When not used as a side eject cutter, the chute is removed and replaced with a side skirt shield to meet safety regulations. The side eject option is available now and made to order.

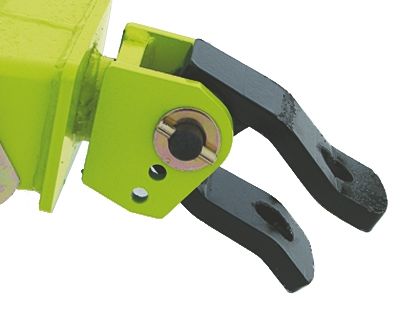

Open clevis hitch.

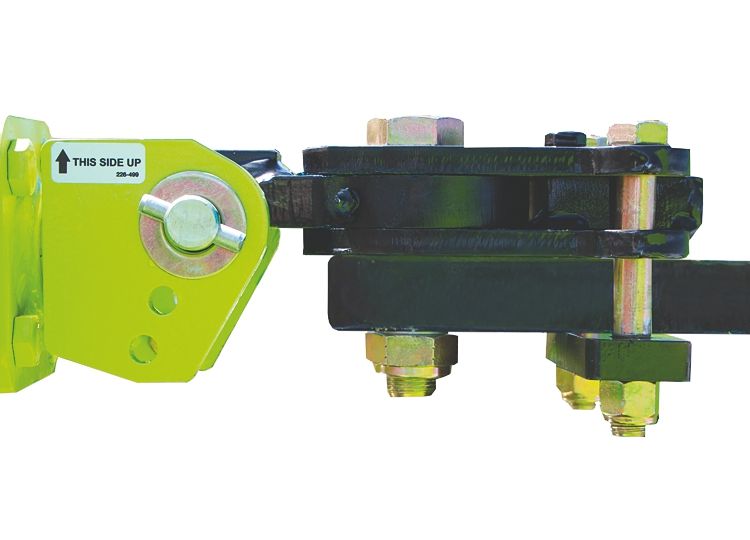

Precision hitch.

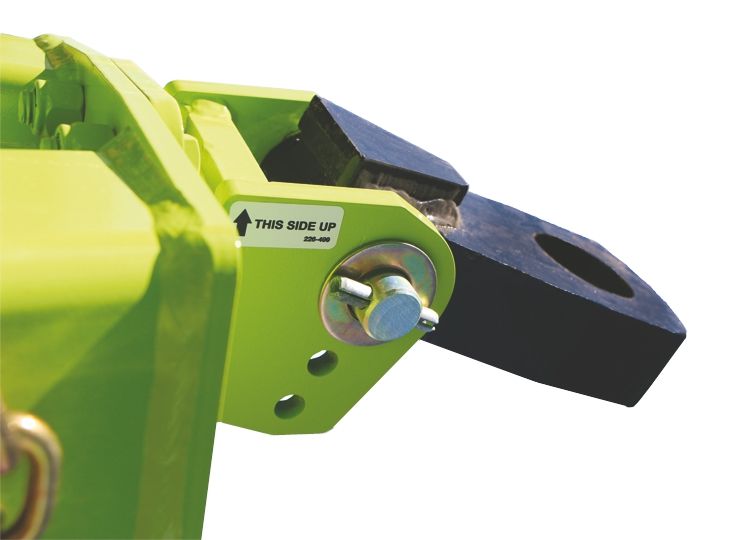

Solid tongue hitch.

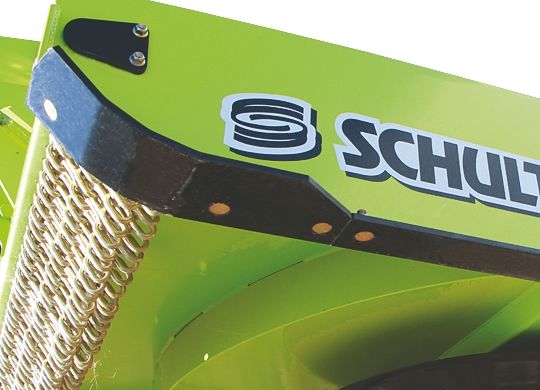

Safety chains for personal protection and heavy duty skids to protect the slasher.
