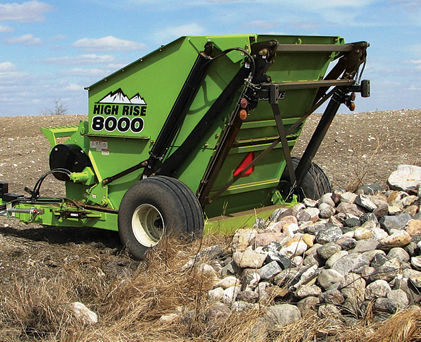

High Rise 8000 Specifications

8' dump height with super large 3 cubic yard hopper so you can spend more time picking and less time running to the dump site.

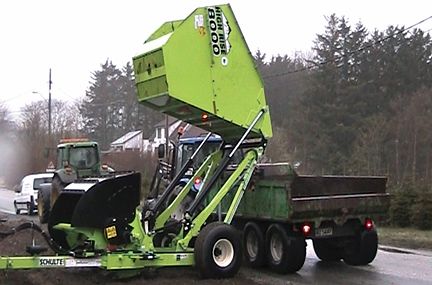

Load trucks with ease!

  • Build larger stone piles!
  • Durable tapered T-iron grate with 38 mm (1 1/2") thick teeth eliminates jamming while allowing soil to sift through for clean rock picking.
  • Batt tubing has 10 mm (3/8") thick walls with wrap around, hard surfaced batt teeth for greater strength and wear resistance.
  • Large, heavy wire springs hold batts firmly in position and cushion shock loads. Spring coil diameter is reduced at the ends to minimize the possibility of breaking the spring hooks.
  • Floating grate protects the machine from damage due to large immovable rocks.
  • Optional hydraulic pivoting hitch pole allows the machine to be quickly moved from the offset picking position to a centred transport position.
  • Large 16.5L X 16.1 10 ply tires provide superior flotation.
  • Flow Control - a 0-56.8 L/m (0-15 GPM) flow control valve helps to control the reel speed. This option is useful on tractor models where hydraulic flow is not adjustable.
  • The Schulte High Rise 8000 is hydraulically driven using a rugged Char-Lynn 2000 series hydraulic motor in combination with a flow control valve for reel speed adjustment and a crossover relief valve to cushion shock loads.
  • Grated hopper bottom helps sift out as much dirt as possible.

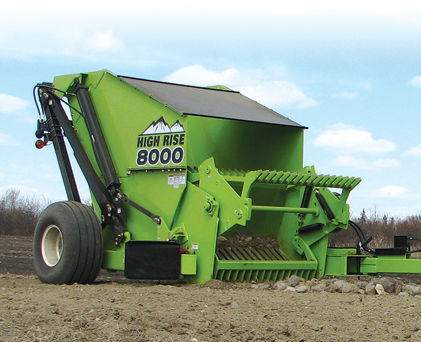

  • Three batt reel with high trip clearance provides superior performance in large rocks.
  • Full one-year warranty on materials and workmanship.

High Rise 8000 Specifications

Weight

2929 kg (6458 lbs.)

Overall length

5816 mm (19’ 1”)

Overall width with tyres

2921 mm (9’ 7")

Hopper capacity

2.29 m3 (3 cu. yds.)

Picking width

1524 mm (5’)

Dumping height

2438 mm (8’)

Tyre size

16.5L x 16.1 x 10 ply (standard)

Drive options

Hydraulic Drive

Required horsepower

85 HP (63 kW)

Tractor hydraulic requirements

45.5 L/m (12 GPM) @ 15168 KPA (2200 psi) (dual remote outlets)

Hydraulic motor displacement

24402 cc (14.9 cubic inch)/revolution

Final drive ratio

4:1

Drive sprockets

11T and 45T #80

Crossover relief valve

12086 KPA (1750 PSI) cracking pressure

Recommended reel speed

36 RPM

Pick rocks

5 cm - 69 cm (2" - 27")

Heavy duty batt springs are standard on both models.

There's nothing tougher than Schulte's super batts on the contractor models.

Replaceable pickup teeth on contractor models.

Optional hydraulic swing hitch kit makes for easy folding and unfolding of the picker.

A High Rise at work...

These two videos were shot during a start up of a High Rise 8000 Contractor model in 2018. As part of our normal delivery service, we connect the machine to the owner's tractor and teach them how to operate the machine. David is using his High Rise 8000 for the first time, picking up smaller loads while he gets comfortable with the way the machine operates.
